Transphorm TDTTP2500B066B-KIT GaN Evaluation Platform

Transphorm TDTTP2500B066B-KIT GaN Evaluation Platform offers high efficiency single-phase AC-DC conversion. The Evaluation Platform pairs a Microchip Technology dsPIC33 16-Bit Digital Signal Controller with Transphorm GaN FETs in the fast-switching leg of the circuit. The kit also uses low-resistance MOSFETs in the slow-switching leg of the circuit. This results in improved performance and efficiency.

Features

Power 2500W
Switching frequency 66kHz
Easy-to-use platform to investigate GaN

Microchip Technology dsPIC33CK256MP506 16-Bit DSP
Transphorm TP65H050G4WS 650V SuperGaN® FET

Applications

Datacenter power supplies
Broad industrial power supplies

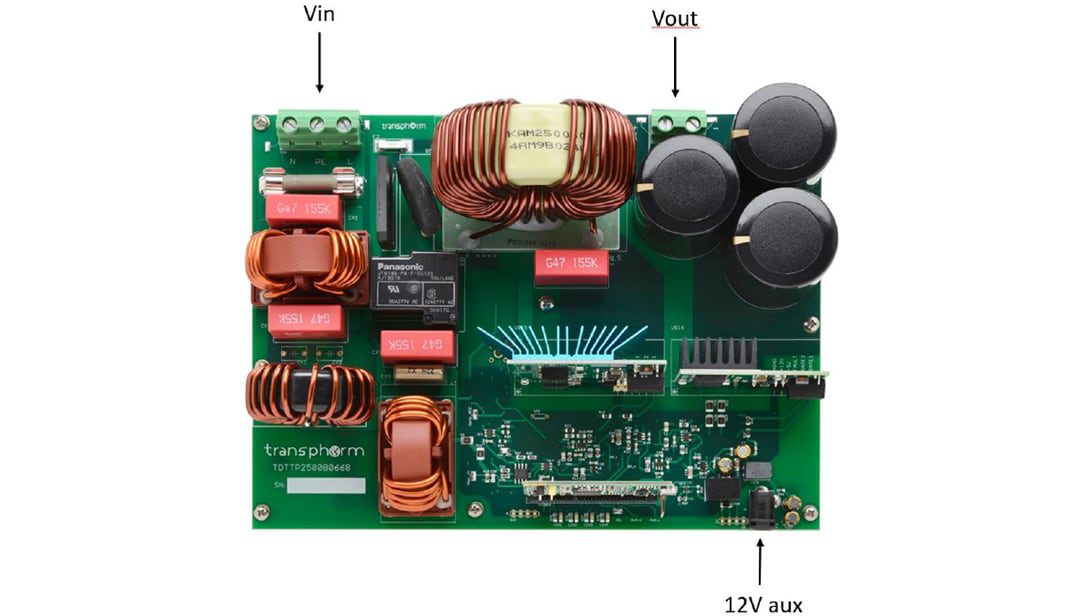

Board Layout

Transphorm TDTTP2500B066B-KIT GaN Evaluation Platform

Resources

Quick Start Guide
User Guide

Firmware Guide
Schematic Diagrams

Transphorm TDTTP2500B066B-KIT GaN Evaluation Platform

Features

Applications

Board Layout

Resources
