Terasic Technologies Apollo S10 SoM Developer Kit

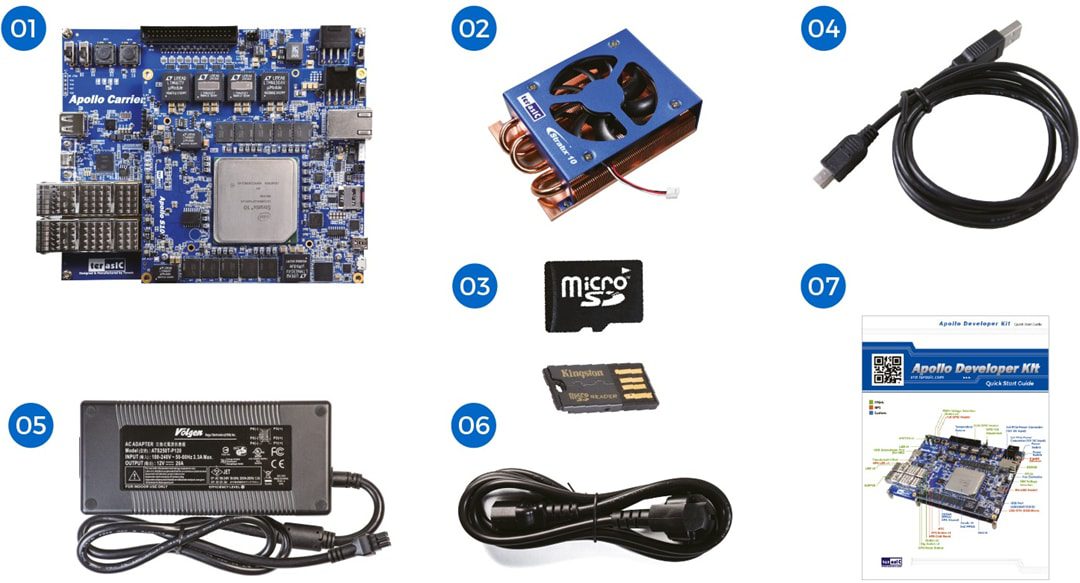

Terasic Technologies Apollo S10 SoM Developer Kit is designed for modular and scalable high-performance FPGA prototyping and HPC solutions. The included Apollo S10 SoM (System on Module), based on the Intel® Stratix® 10 SoC (System on Chip), offers speed, breakthrough computing power, and low power consumption. The Apollo S10 SoM also includes a number of high-end hardware interfaces such as high-capacity and high-bandwidth DDR4 SDRAM (up to 64GB), on-board USB-Blaster II, and FMC/FMC+ connectors for I/O expansion. The Apollo S10 Carrier Board included in the Developer Kit features two ultra-low-latency QSFP+ connectors for 40G Ethernet and Thunderbolt™ 3, enabling developers to evaluate the I/O planned for their systems, and build their custom systems around it.

Features

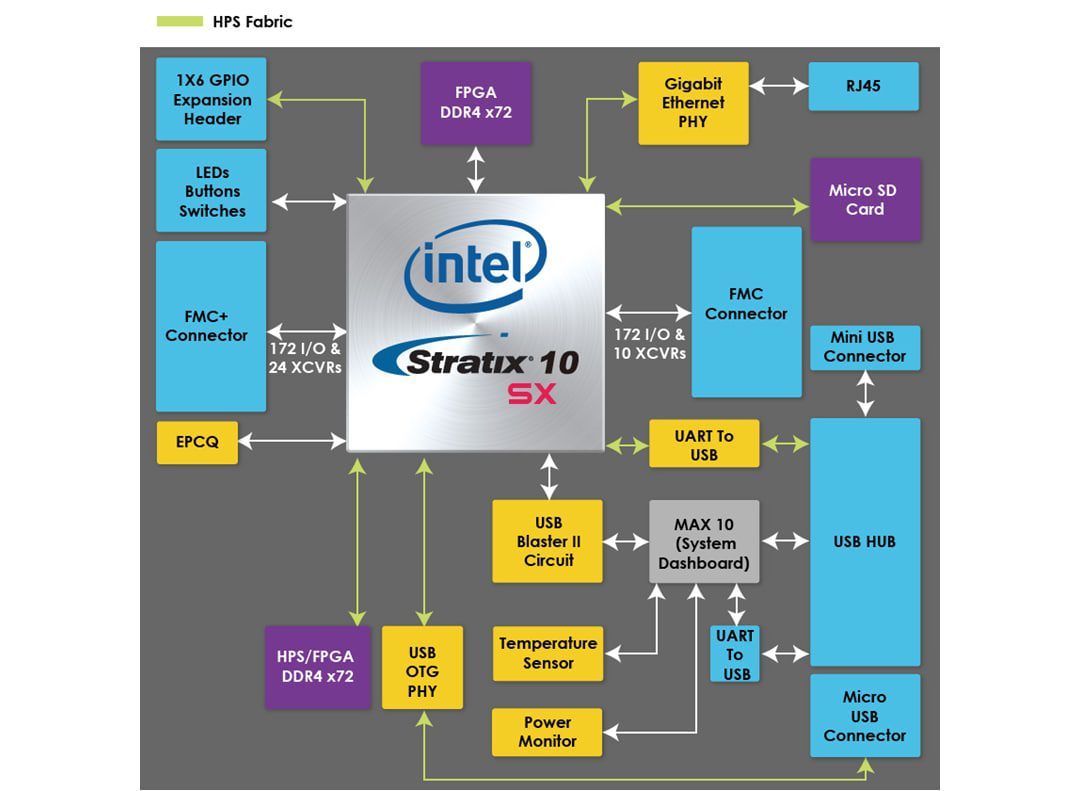

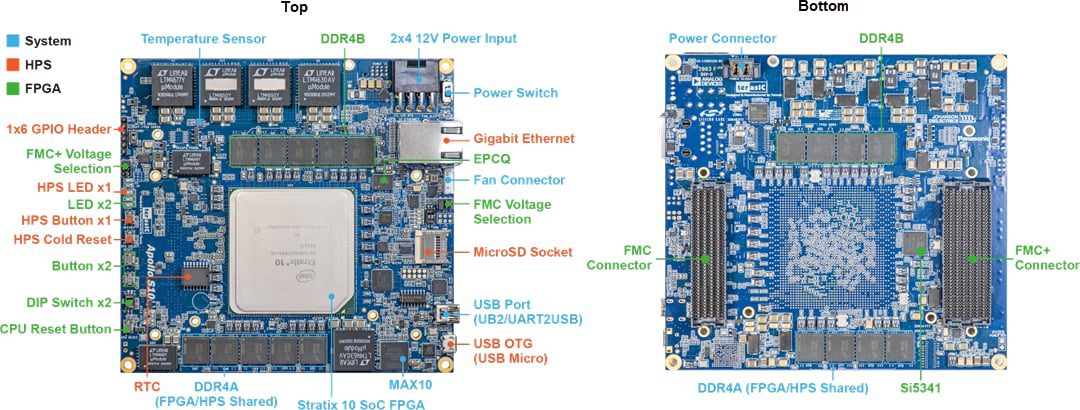

Apollo S10 SoM
- FPGA
  - Intel® Stratix® 10 SoC FPGA (1SX280HU2F50E1VG)
- FPGA configuration
  - On-board USB Blaster II for FPGA programming and debug
  - AS Mode configuration from QSPI Flash
- Clock and user interface
  - Four 50MHz single-ended clock source
  - One 100MHz single-ended clock source
  - Clock generator Si5341
  - 2x LED, 2x button, 2x dip switch, CPU reset
  - Power switch
  - FMC voltage 1.8V/1.5V/1.2V selection
  - FMC+ voltage 1.8V/1.5V/1.2V selection
- Memory
  - 1024Mbit QSPI Flash (EPCQL1024 Compliant)
  - Total of 64GB DDR4 x72 2133MT/s with ECC
    - Two independent DDR4 banks
    - One bank shared with FPGA and HPS
- Communication and expansion
  - FMC (Vita57.1) connector with 10 transceivers
  - FMC+(Vita57.4) connector with 24 transceivers
- HPS
  - MicroSD slot
  - Gigabit Ethernet with RJ45
  - USB OTG with micro USB connector
  - UART to USB with mini USB connector
  - RTC
  - LED, button, cold reset button
  - 1×6 GPIO header
- Dashboard system
  - Input power monitor
  - FPGA and board temperature monitor
  - Fan control and monitor
  - Auto fan speed
  - Auto shutdown
- Power source
  - 12V_DC from 2×4 PCIe connector
  - 12V_DC from Samtec connector (reserved for carrier board)

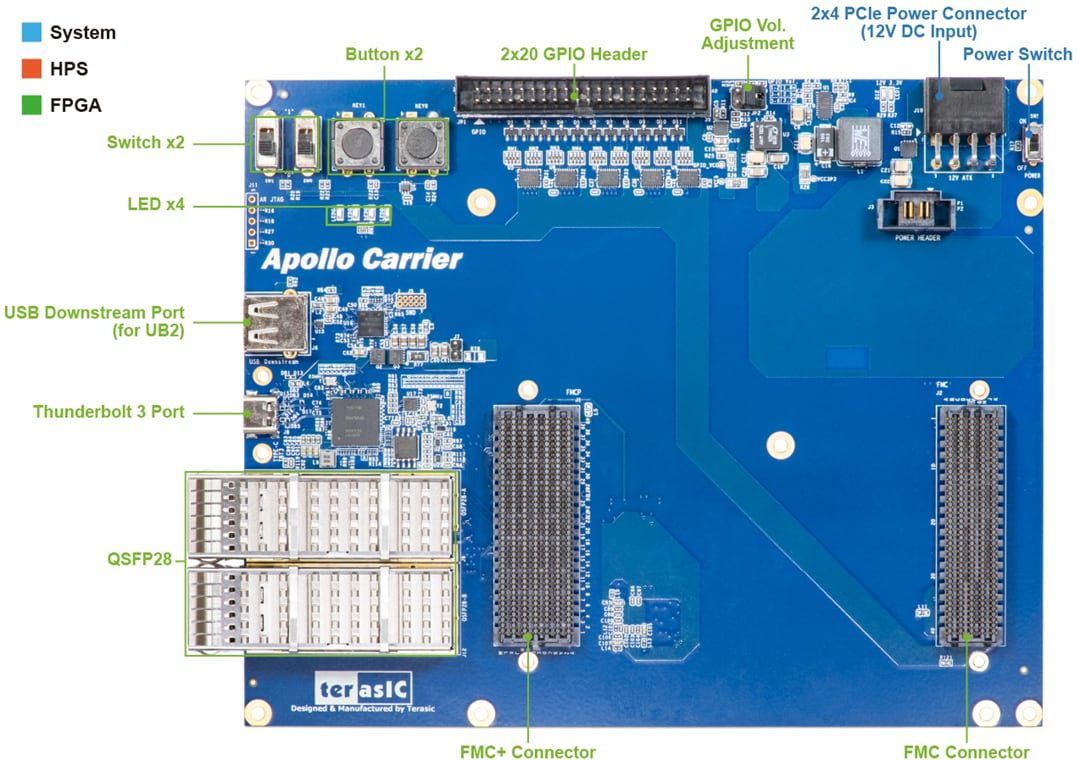

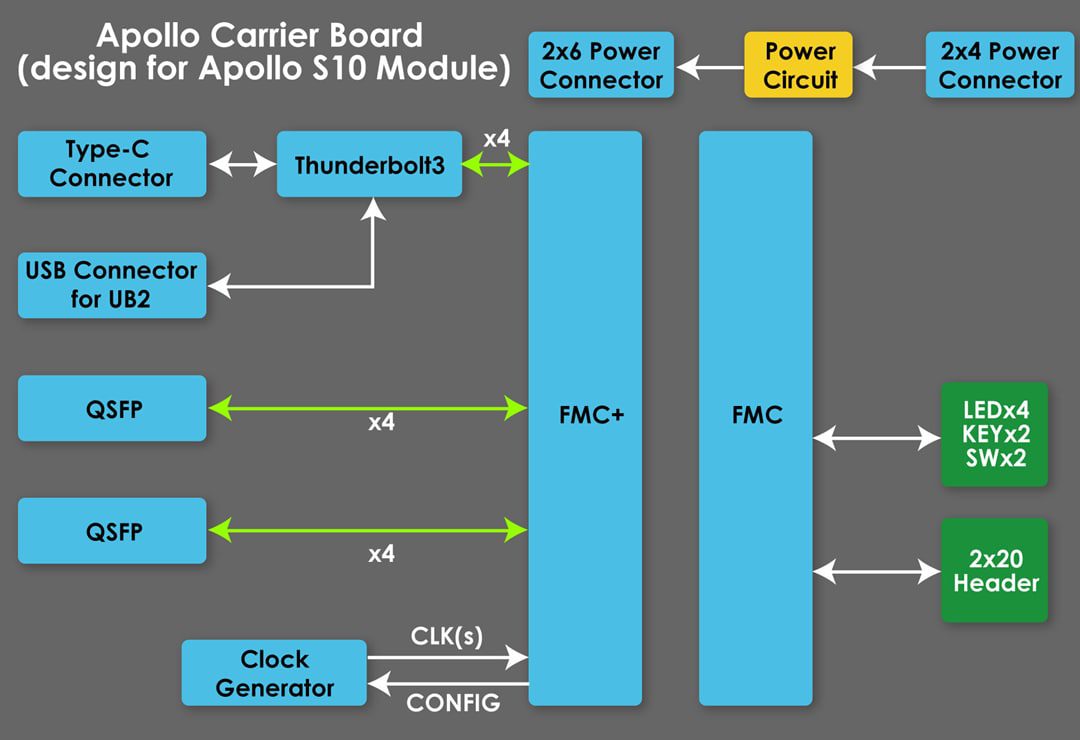

Apollo Carrier Board
- PCIe Gen3 x4 via Thunderbolt 3 (Type-C Connector)
- USB downstream port via Thunderbolt 3 (Type-A Connector)
- Two QSFP connectors (40G Ethernet)
- Clock generator to provide reference clock for transceiver IP
- 4x LED, 2x button, 2x switch
- 2×20 GPIO expansion header
