TE Connectivity / Linx Technologies ANT-5GW-MMG1-SMA Magnetic 5G Cellular Antennas

TE Connectivity / Linx Technologies ANT-5GW-MMG1-SMA Magnetic Mount 5G Cellular Antennas offer repositionable external panel mounting to ferrous metallic surfaces. The 5G Antennas are designed for New Radio, LTE, and cellular IoT (LTE-M, NB-IoT) applications. The TE Connectivity / Linx Technologies ANT-5GW-MMG1-SMA cellular antennas terminate in an SMA plug (male pin) connector on a 1-, 2-, or 3-meter length on RG-174/U coaxial cable.

Features

Performance at 698MHz to 803MHz≥ 3.1 VSWR
3.4dBi peak gain
87% efficiency
Performance at 791MHz to 894MHz≥ 1.6 VSWR

3.4dBi peak gain
93% efficiency
Ground plane independent dipole antenna
88.5mm (3.48in) tall
Repositional magnetic base
SMA plug (male pin) connection

Applications

Worldwide 5G/4G/3G/2G
LTE-M (Cat-M1) and NB-IoT Cellular
Citizens Broadband Radio Service (CBRS)
4.9GHz Public Safety
Emerging 5G C-Band applications

Emerging 5G 2.5GHz EBS applications
Remote control, monitoring, and sensing
Internet of Things (IoT) devices
ISM applications

TE Connectivity / Linx Technologies ANT-5GW-MMG1-SMA Magnetic 5G Cellular Antennas

Features

Applications

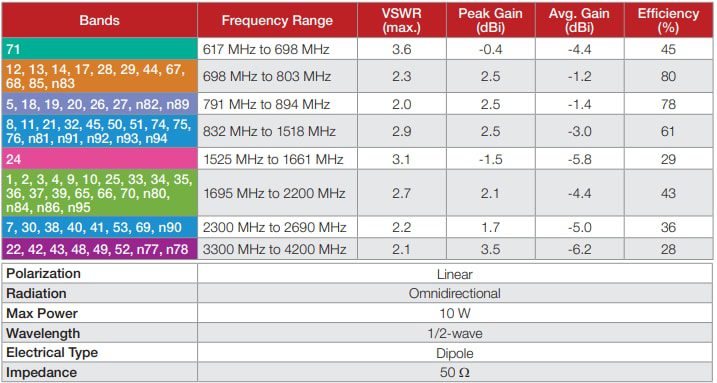

Specifications
