TE Connectivity / Alcoswitch MRSS Miniature Rotary Switches

TE Connectivity’s (TE) Alcoswitch MRSS Miniature Rotary Switches are surface mount and thu hole rotary switches with horizontal and vertical mounting configurations. These switches are offered in hexadecimal and binary code configurations, and achieve a high degree of reliability using 2 points of contact. TE Alcoswitch MRSS Miniature Rotary Switches are suitable for a variety of applications including elevators, security systems, lighting systems, machinery, and telecommunication.

Features

Surface mount (SMT) and thru-hole mount (THT)
Low profile to save space
Vertical and horizontal versions

Hexadecimal or binary code with 3 coding options
MSL 1 conformance

Applications

Elevator
Single-chip
Security systems
Lightning systems

Machinery
Telecommunication
Lighting

Specifications

7.7mm square size for horizontal orientation, 7.2mm square size for vertical orientation
0.4VA contact rating at 20V_AC/V_DC

100mΩ max contact resistance at 2V_DC
10,000-step mechanical life
10,000-step electrical life at 5V_DC, 10mA

TE Connectivity / Alcoswitch MRSS Miniature Rotary Switches

Features

Applications

Specifications

Videos

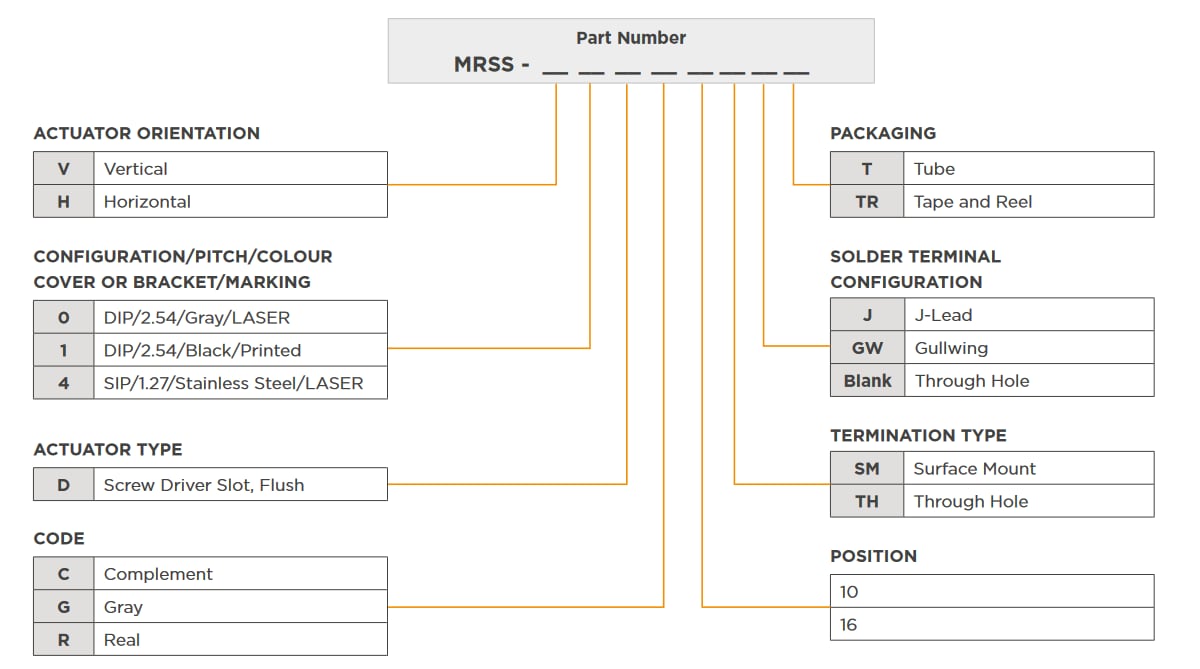

Part Number Code
