Qorvo ACT88760EVK Evaluation Kits

Qorvo ACT88760EVK Evaluation Kits demonstrates the ACT88760-102.E2T Active PMU power management IC. Other ACT88760-xxx options can be evaluated on this kit by replacing the IC and any other necessary components. The kit can be used as a standalone board if desired.

Features

Provides setup and operation instructions, schematic, layout, BOM, and test data
Demonstrates the ACT88760-102.E2T Active PMU power management IC
Other ACT88760-xxx options can be evaluated on this EVK by replacing the IC and any other necessary components
Can be used as a standalone board if desired

Access the internal registers and take full advantage of the IC’s capability
Connect the EVK kit to a PC with Qorvo’s USB-TO-I²C interface dongle and use the GUI software
Provides full access to each converter’s input and output voltage, as well as all the digital control signals

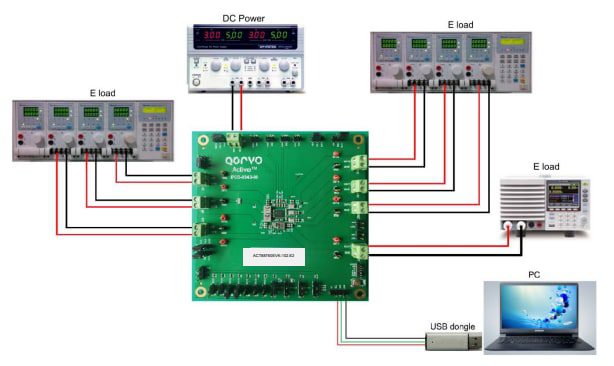

Hardware Setup
