Phoenix Contact M5 to M12 Circular Connectors

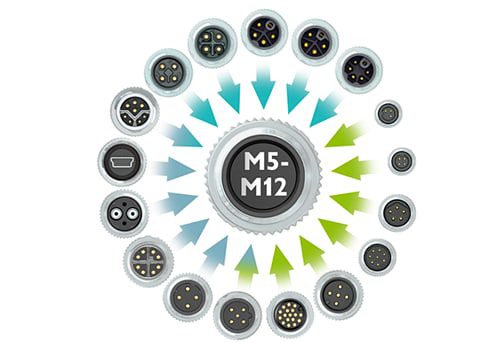

Phoenix Contact M5 to M12 Circular Connectors feature a uniform mechanical installation with preassembled litz wires and cables ideal for connection and transmission applications. The connectors offer a reliable 360° shielding and a push-pull fast-locking system suitable for harsh environmental conditions. The circular connectors provide a modular construction with various pin assignments, allowing easy integration into a device’s design. Typical Phoenix Contact M5 to M12 Circular Connectors applications include industrial production and signal, data, and power transmissions.

Features

Preassembled with litz wires or cables
Shield connection option
Three mounting options:
- Front
- Rear
- Modular
One- and two-piece connectors for direct PCB mounting
Metric or Pg fastening thread

Uniform mechanical installation conditions
Halogen-free PUR cables
Push-pull fast-locking system
Reliable 360° shielding
Suitable for extreme environmental conditions
Space-saving high-position connectors
Increased machine availability
RoHS 2 compliant

Applications

Wave, THR, and SMT soldering processes
Reliable alternative to permanent cable connections
Industrial production

Signal transmission
Data transmission
Power transmission
