onsemi NCL31000ASGEVB LED Driver Evaluation Board

onsemi NCL31000ASGEVB LED Driver Evaluation Board is an Arduino-shield compatible demonstration platform for the NCL31000 Intelligent LED Driver. The NCL31000 supports both high-bandwidth analog dimming and PWM dimming down to zero current. The device integrates a fixed 3.3V DC-DC and an adjustable 2.5V to 24.0V DC-DC Buck Converters. A diagnostics block incorporates an ADC, which measures input and LED output currents, voltages, LED temperature, DC-DC voltages, and currents. Fast safety mechanisms protect the critical blocks of the device.

onsemi NCL31000ASGEVB LED Driver Evaluation Board is designed to connect to an Arduino-compatible microcontroller board, which can be connected to a PC. A USB to I2C interface can also be used.

Features

  • Arduino shield compatible
  • Visible light communication capable and YellowDot™ compliant
  • >97 % efficiency of the total solution, including EMC, DC-DC, and diagnostics
  • High linearity and 0.1% accuracy
  • True dimming to zero
  • 24V to 57V input voltage
  • LED Power capability beyond 100W
  • Optional I2C/SPI interface

Required Equipment

  • Arduino-compatible microcontroller board or USB to I2C interface
  • PC with an available USB port
  • 24V to 57V lab power supply
  • LED string rated for 16V to 42V

Resources

  • User Guide
  • Schematic Diagrams

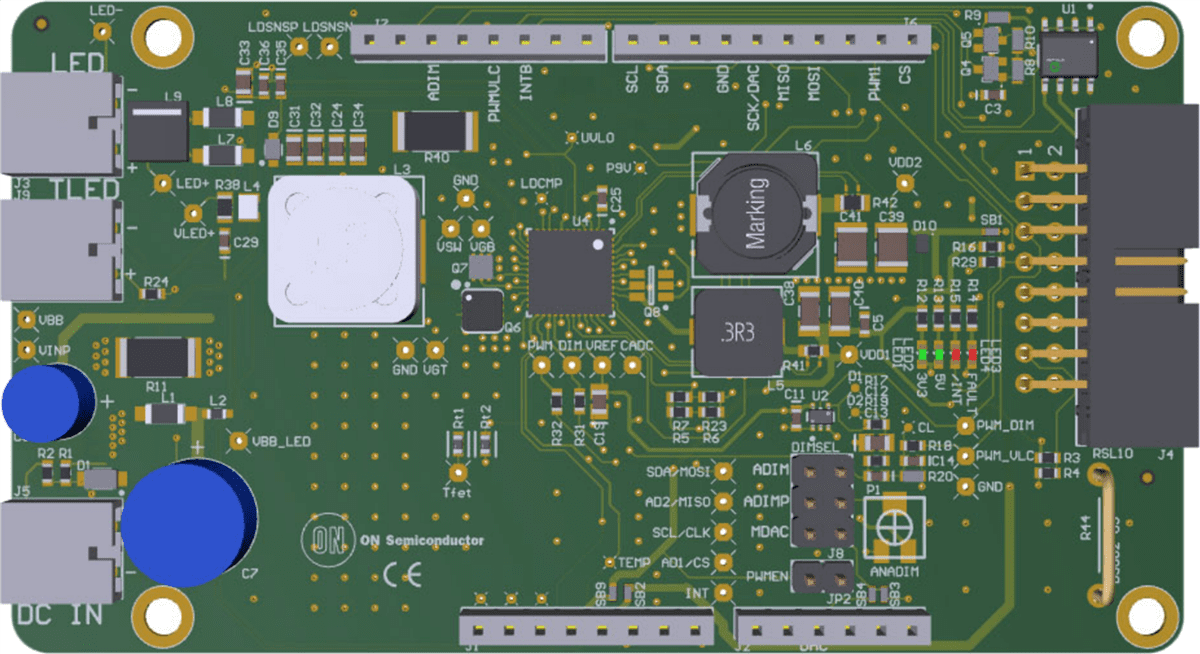

Board Layout

onsemi NCL31000ASGEVB LED Driver Evaluation Board
