IXYS STP802U2SRP 1.5A Sensitive Dual SCRs

IXYS STP802U2SRP 1.5A Sensitive Dual SCRs offer a high static dv/dt with a low turn-off (tq) time. The IXYS STP802U2SRP SCRs feature up to 20A surge capability, up to 1150V non-repetitive forward direction peak off-state voltage, and up to 900V non-repetitive reverse blocking voltage. These SCRs are designed for ground-fault circuit interrupters, arc-fault circuit interrupters, residual current devices, and residual current circuit breakers with overload protection applications.

Features

Glass-passivated junctions
800V isolation voltage
Up to 20A surge capability
Up to 1150V_DSM non-repetitive forward direction peak off-state voltage
Up to 900V_RSM non-repetitive reverse blocking voltage

1.5A_RMS on-state current
High dv/dt noise immunity
Sensitive gate for direct microprocessor interface
Halogen-free and RoHS compliant

Applications

Ground-fault circuit interrupters
Arc-fault circuit interrupters
Circuit breakers

IXYS STP802U2SRP 1.5A Sensitive Dual SCRs

Features

Applications

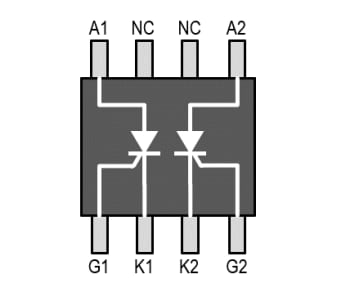

Circuit Diagram
