Diodes Incorporated AP6120x 2A Synchronous Buck Converters

Diodes Incorporated AP6120x 2A Synchronous Buck Converters have a wide input voltage range of 2.3V to 5.5V and low Quiescent supply current (I_Q). These converters integrate a 110mΩ high-side power MOSFET and an 80mΩ low-side power MOSFET that results in high-efficiency step-down DC-DC conversion. The AP6120x converters can be easily used by minimizing the external component count to obtain a fast transient response, easy loop stabilization, and low output voltage ripple. Typical applications include distributed power bus supplies, small home appliances, FPGA, DSP, and ASIC supplies, network video cameras, wireless routers, and consumer electronics.

Features

2.3V to 5.5V input voltage range (V_IN)
0.6V to 3.6V output voltage range (V_OUT)
2A continuous output current
0.6V ±2% reference voltage
19µA low Quiescent current
1.3MHz switching frequency
Up to 89% efficiency at 5A light load
AP61202 and AP61203 power good indicator

Operation mode options:
- AP61200 and AP6120 pulse frequency modulation
- AP61201 and AP61203 force pulse width modulation
Protection circuitry:
- Undervoltage Lockout (UVLO)
- V_IN Overvoltage Protection (OVP)
- Peak current limit
- Valley current limit
- Thermal shutdown

Applications

5V distributed power bus supplies
Small home appliances
White goods
FPGA, DSP, and ASIC supplies

Network video cameras
Wireless routers
Consumer electronics
General-purpose point of load

Diodes Incorporated AP6120x 2A Synchronous Buck Converters

Features

Applications

Block diagram

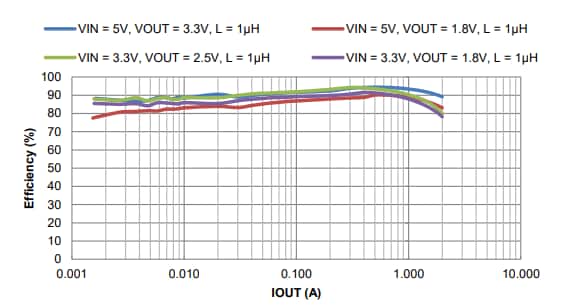

Efficiency Vs Output current graph

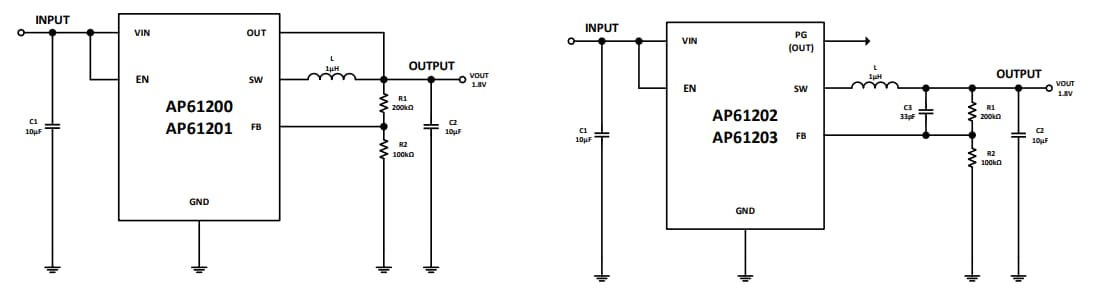

Application circuits
