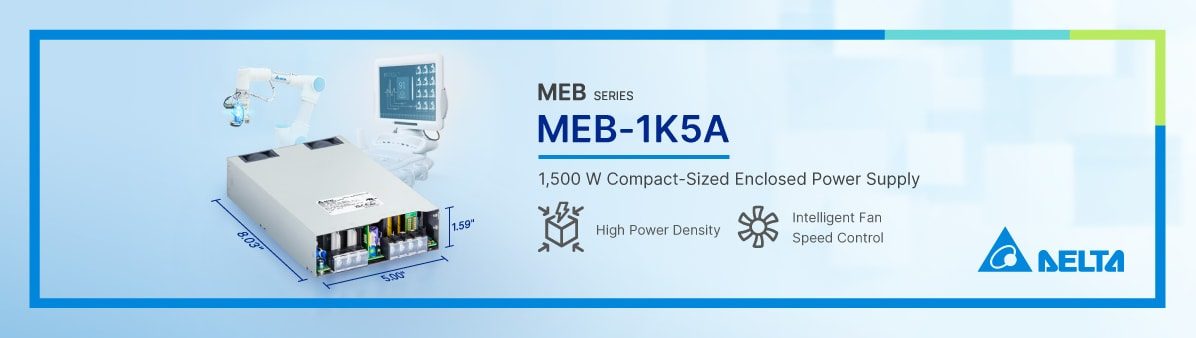

Delta Electronics MEB-1K5A 1500W Power Supplies

Delta Electronics MEB-1K5A Series 1500W Power Supplies offer up to a 1500W power rating in a 5″ x 8.03″ x 1.59″ package. MEB-1K5A power supplies feature a single output voltage of 24V and 48V and provide an additional 5V/2A standby output, with up to 92% efficiency at 230V_AC input. The MEB-1K5A series is certified in medical and AV/ICT equipment safety approvals and applies to industrial applications like collaborative robots, laser machines, and test and measurement instruments. Delta Electronics MEB-1K5A Series 1500W Power Supplies feature current sharing, analog voltage trimming, remote on/off control, and intelligent fan speed control.

Features

Current sharing
Conformal coating
Class B conducted and radiated EMI
LED indicator

Remote on/off control
Analog voltage trimming
Intelligent fan speed control

Applications

Industrial
- Collaborative robots
- Laser machines
- Test and measurement instruments

Medical
- Ultrasound
- Aesthetic equipment

Specifications

Up to 1500W power rating
5″ x 8.03″ x 1.59″ package
Full power up to +50°C ambient
Up to 500Khrs MTFB
5V/2A standby output
24V and 48V single-output voltage
Up to 23.5W/inch³ power density
40A inrush current
47Hz to 63Hz input frequency
90V_AC to 264V_AC input voltage range
<15A input current
-20°C to +70°C operating temperature range
5000m or 54kPa operation altitude
Up to 92% efficiency

Safety Certifications
- IEC 60601-1 3rd edition + A1+A2 CB report
- ANSI/AAMI ES 60601-1 +CAN/CSAC22.2 No.60601-1: (Ed.3.2005)
- UL 62368-1 and CAN/CSA C22.2 No. 62368-1
- IEC 62368-1 CB report
- IEC 60950-1 CB report
- TUV EN60601-1:2006/A11/A12
- TUV EN62368-1
- CCC
- IEC 60335-1 (for 24 V model)
- IEC 61558-1/-2-16 (for 24 V model)
- TUV EN60335-1 (for 24 V model)
- TUV EN61558-1/-2-16(for 24 V model)
