Advantech FPM-800S Industrial Monitors

Advantech FPM-800S Industrial Monitors are rugged and reliable industrial display panels with resistive touch control, direct VGA, DP ports, and a stainless steel front bezel. The Advantech FPM-800S Industrial Monitors feature an Ingress Protection rating of IP-66, protecting water and dust intrusion and making them suitable for use in hygiene-demanding and hazardous environments. These displays are panel, wall, desktop, and VESA arm mountable, feature an OSD (On-Screen Display) control pad on the rear panel, and a true flat 304 stainless steel bezel with an anti-rust coated rear cover.

Features

5-wire resistive touch with enhanced ITO film
Diagonal display size
- FPM-815S: 15″
- FPM-817S: 17″
Display type
- FPM-815S: XGA TFT LCD with LED backlight
- FPM-817S: SXGA TFT LCD with LED backlight
Maximum resolution
- FPM-815S: 1024 x 768
- FPM-817S: 1280 x 1024
16.7M colors
VGA and Display Port video inputs
USB interface
Luminance
- FPM-815S: 300cd/m2
- FPM-817S: 250cd/m2

Viewing angle
- FPM-815S: 160° horizontal, 160° vertical
- FPM-817S: 178° horizontal, 178° vertical
Contrast ratio
- FPM-815S: 500:1
- FPM-817S: 1000:1
Display panel dimensions
- FPM-815S: 405.3mm x 329.4mm x 59.3mm (15.96″ x 12.97″ x 2.33″)
- FPM-817S: 432.5mm x 365.5mm x 59.3mm (17.03″ x 14.39″ x 2.33″)
CE, FCC, CB, UL, and BSMI certified
-20°C to +60°C operating temperature range
IP66 Ingress rating

Applications

Human-machine interface
Self-service kiosks

Point of Sale (POS)
Medical and food service

Documents

Datasheets
- FPM-815S
- FPM-817S

User Manual
- Advantech FPM-800S Series

Advantech FPM-800S Industrial Monitors

Features

Applications

Documents

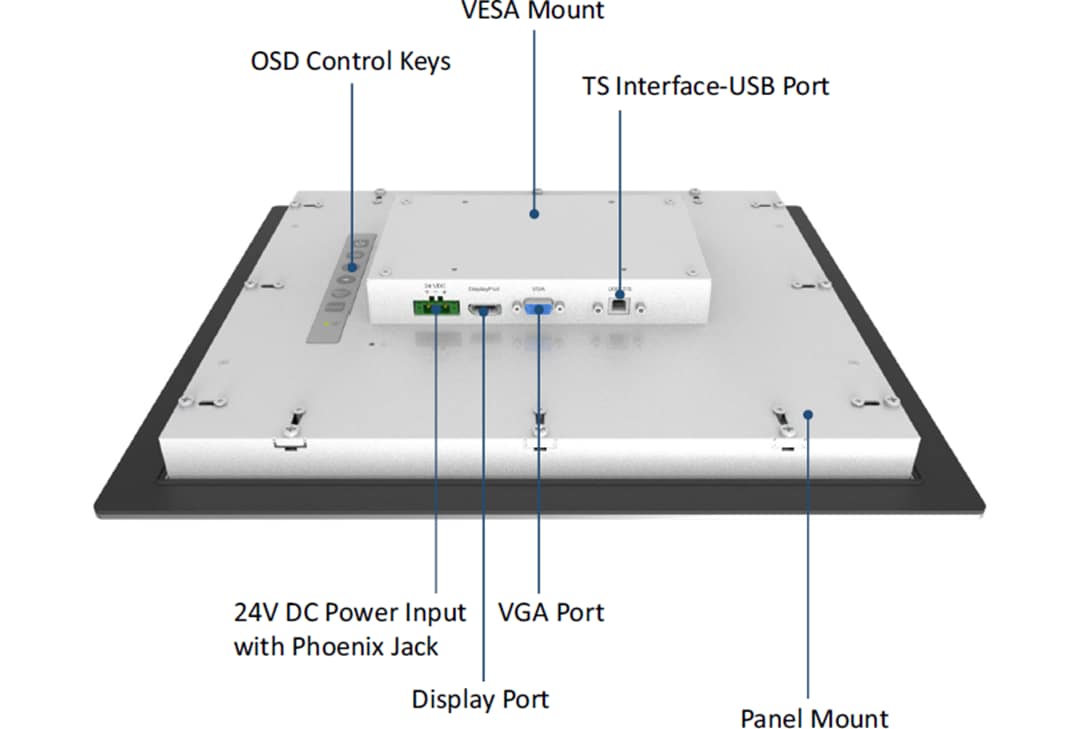

I/O Ports

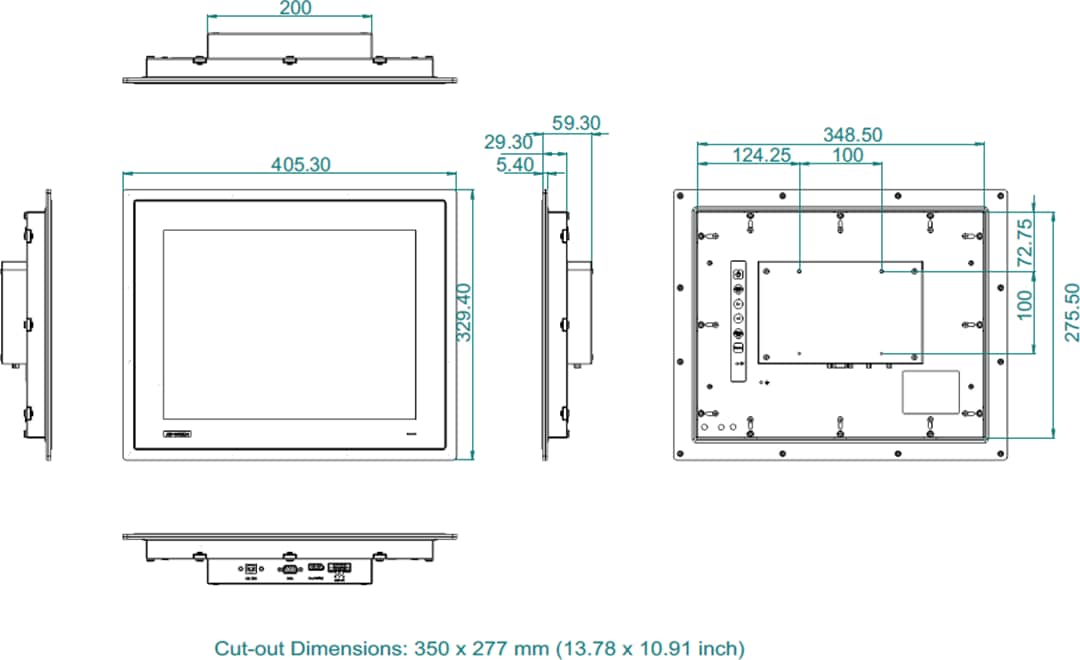

FPM-815S Dimensions

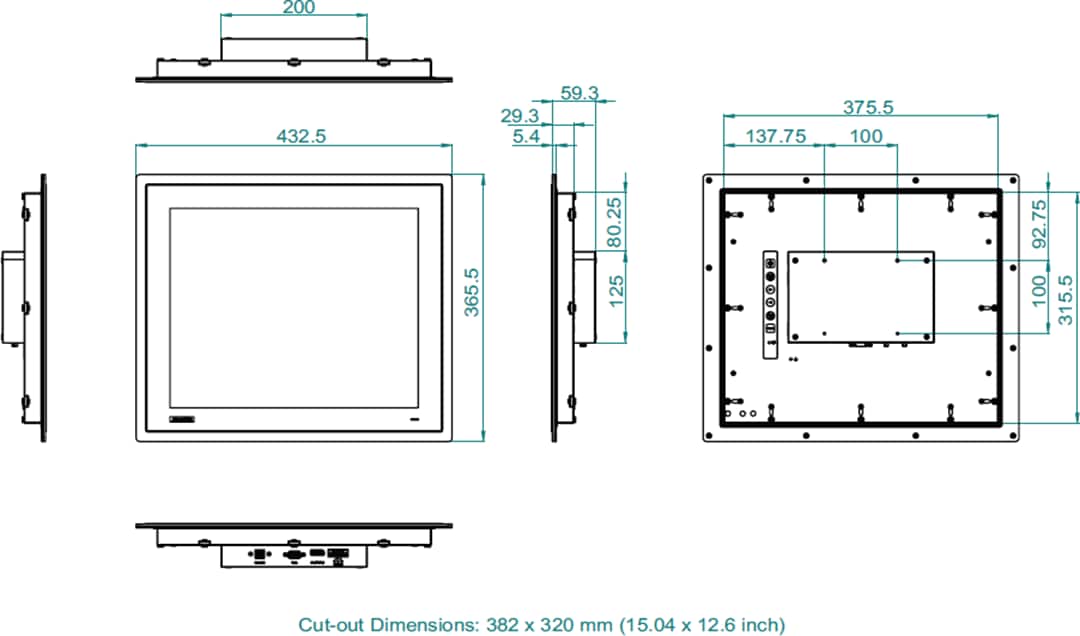

FPM-817S Dimensions
