ABLIC S-34TS04A 2-Wire Serial EEPROM

ABLIC S-34TS04A 2-Wire Serial EEPROM comes with a temperature sensor for the Dual In-line Memory Module (DIMM) serial presence detection. This EEPROM incorporates a capacity of 4Kb and the organization of 2 pages × 256-word × 8-bit. The S-34TS04A EEPROM provides page write and sequential reading. This EEPROM operates with the I²C bus at 1MHz maximum frequency. The ABLIC S-34TS04A EEPROM offers a software-programmed shutdown mode that can be set by the I²C to achieve a reduction in the current consumption.

Features

Temperature sensor for DIMM serial presence detect
Page write and sequential read available
Software-programmed shutdown mode reduces current consumption

Write protect function during low power supply voltage
- Individual software data protection for each of four 128-byte blocks

Specifications

Page write of 16-bytes/page
10⁶ cycle/word endurance at T_a=+25°C
100 years data retention at T_a=+25°C
4Kb memory capacity
FFh initial delivery state
Temperature accuracy:
- 0.5°C typical at T_a = +75°C to +95°C
- 1.0°C typical at T_a = +40°C to +125°C

8-samples/s (minimum) temperature sample rate
TSE2004B2 JEDEC standard compliant
2.2V to 3.6V operating voltage range
1MHz operating frequency (maximum)
DFN-8(2030)B package

ABLIC S-34TS04A 2-Wire Serial EEPROM

Features

Specifications

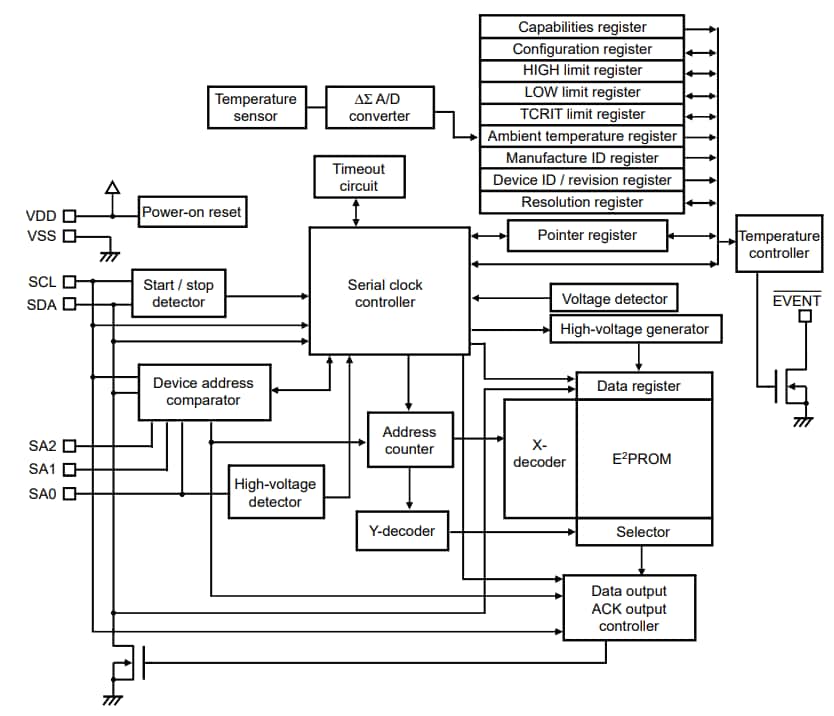

Block Diagram
