ABLIC S-34C04A 2-Wire Serial EEPROM

ABLIC S-34C04A 2-Wire Serial EEPROM is designed for Dual In-line Memory Module (DIMM) serial presence detection and operates in the 1.7V to 3.6V voltage range. This EEPROM features 4Kb memory capacity and the organization of 2 pages × 256-word × 8-bit. The S-34C04A EEPROM comes with page write and sequential read. This EEPROM operates with the I²C-bus at 1MHz maximum operating frequency. ABLIC S-34C04A EEPROM provides individual software data protection for each of the 4 128-byte blocks.

Features

DIMM serial presence detect
Page write and sequential read available
Write protect function during low power supply voltage
1.7V to 3.6V voltage range
4Kb memory capacity
Operating Frequency
- 1MHz (max) at V_DD = 2.2V to 3.6V
- 400kHz (max) V_DD = 1.7V to 3.6V
DFN-8(2030)A package

Page write of 16-bytes/page
10⁶ cycle/word endurance at T_a=+25°C
FFh initial delivery state
100-years of data retention at T_a=+25°C
Schmitt trigger and noise filter on input pins (SCL and SDA)
-20°C to +125°C operating temperature range

ABLIC S-34C04A 2-Wire Serial EEPROM

Features

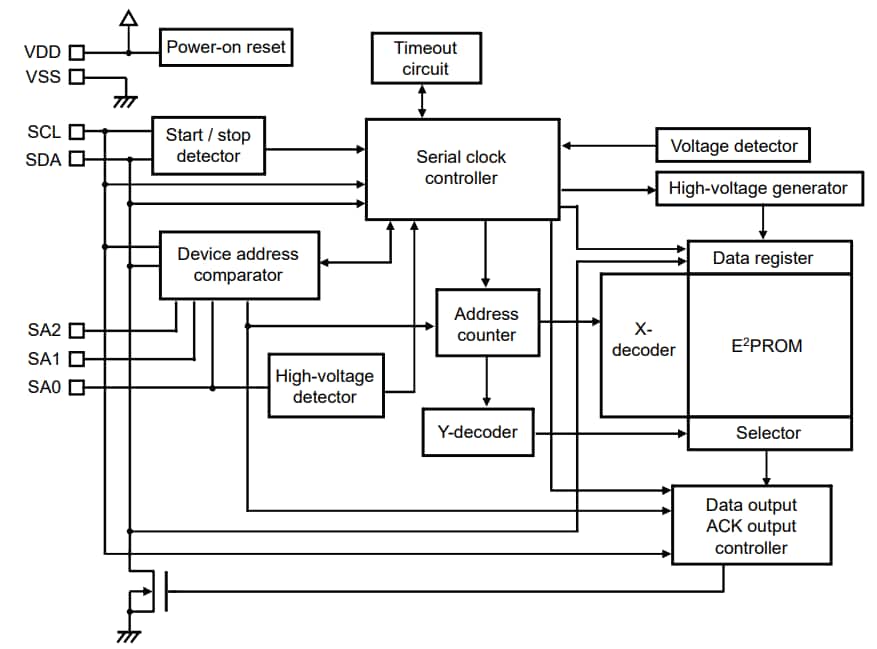

Block Diagram
