Yazaki 2.8 Series Connectors

Yazaki 2.8 Series Connectors offer a 500V_DC isolation resistance, 10mΩ maximum voltage drop, and 22AWG to 14AWG applicable wire size. These connectors are available in sealed and unsealed construction with HPA material for the connectors, copper alloy for male terminals, and copper alloy for female terminals. Yazaki 2.8 Series Connectors provide a 6.8mm vertical terminal pitch, 6.8mm horizontal pitch for sealed connectors, and 5mm horizontal pitch for unsealed connectors.

Specifications

HPA connector material
Copper alloy (Sn/Au plate) for terminals
10mΩ maximum voltage drop
500V_DC, 20MΩ isolation resistance
1000V_AC dielectric resistance
22AWG to 14AWG applicable wire size
90N minimum terminal-to-connector retention force
110N minimum connector-to-connector retention force
-40°C to +125°C operating temperature range

Terminal Pitch
- 6.8mm vertical
- 6.8mm horizontal for sealed
- 5mm horizontal for unsealed
Sealing Performance (Air Leak Pressure) – For Sealed Connectors Only
- 48kPa minimum (pre-heat soak)
- 28kPa (post-heat soak)

Yazaki 2.8 Series Connectors

Specifications

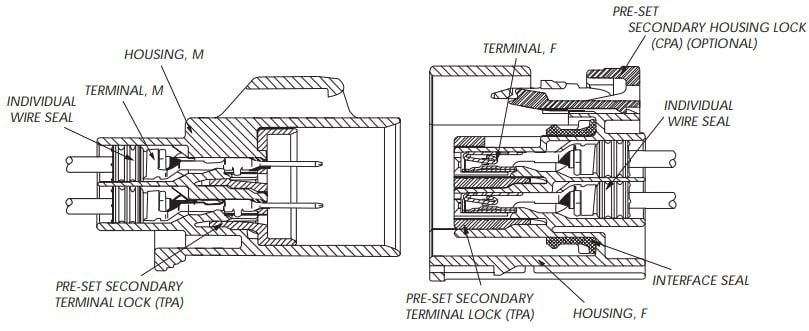

Sealed Construction

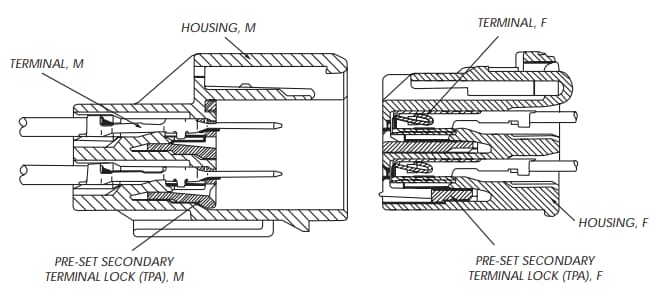

Unsealed Construction
