Yazaki 1.5 Series Connectors

Yazaki 1.5 Series Connectors feature a tab width of 1.5mm for the male terminal and a covering size of 0.3mm² to 1.25mm². The 1.5 Series connectors are available in sealed and unsealed options and the housing has internal laces and spacers for secure terminal positioning. These connectors have a lance locking system for stable and secure mating action between male and female terminals. Yazaki 1.5 Series Connectors offer 500V_DC insolation resistance, 1000V_AC dielectric resistance, and 6.50mm vertical terminal pitch.

Features

Connection Ways
- Wire-to-wire
- Wire-to-printed circuit board
- Wire-to-device

Compact size
Lance locking system
Stable and secure mating action

Specifications

HPA connectors
Copper alloy (Sn/Au plate) male and female terminals
10mΩ max. voltage drop
500V_DC, 20MΩ min. isolation resistance
1000V_AC dielectric resistance
22AWG to 16AWG applicable wire size
Sealing Performance (Sealed Options Only)
- 48kPa min. (pre-heat soak)
- 28kPa (post-heat soak)

90N min. terminal-to-connector retention force
110N min. connector-to-connector retention force
Terminal Pitch
- 3.50mm for horizontal (unsealed)
- 6.50mm for vertical (unsealed)
- 5.50mm for horizontal (sealed)
- 6.50mm for vertical (sealed)
-40°C to +125°C operating temperature range

Yazaki 1.5 Series Connectors

Features

Specifications

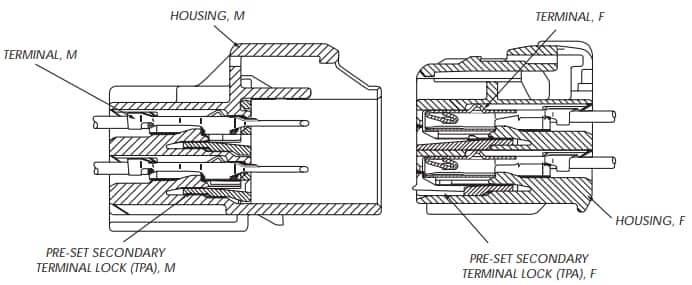

Unsealed Construction

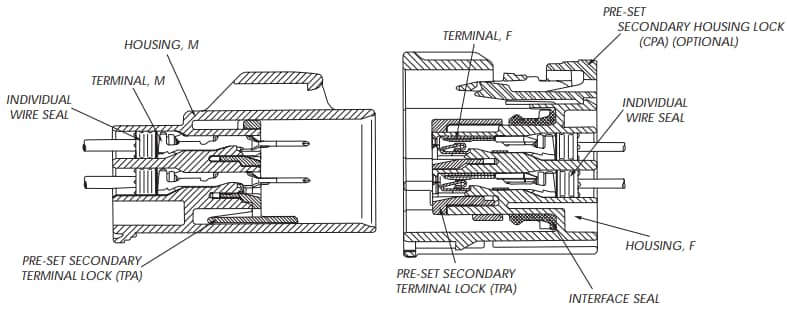

Sealed Construction
