Yazaki 0.64 Series Connectors

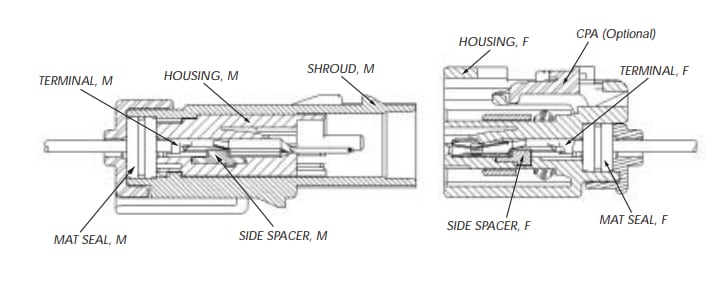

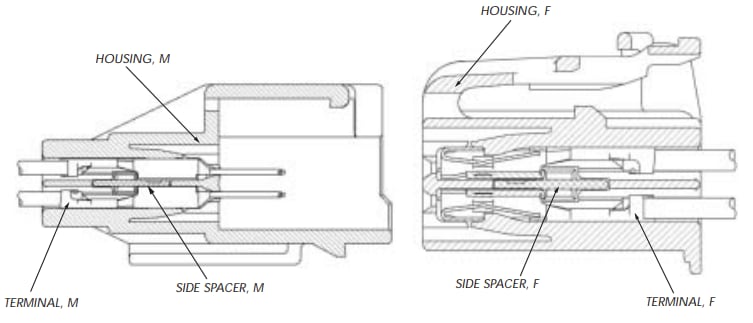

Yazaki 0.64 Series Connectors are available in a variety of connection ways, including wire-to-wire, wire-to-printed circuit board, and wire-to-device. The 0.64 series is available in sealed, unsealed, and sealed and unsealed options. These connectors feature a double terminal locking system that eliminates terminal push-out, and they cannot be mated if the preset terminal spacer is not in the full-lock position. Yazaki 0.64 Series Connectors offer a 500V_DC isolation resistance rating, 22AWG to 18AWG applicable wire size, and terminal pitches of 2.54mm for both vertical and horizontal.
