XP Power VFB150 Open-Frame 150W AC-DC Power Supplies

XP Power VFB150 Open-Frame 150W AC-DC Power Supplies are cost-effective, single-output units that offer 100W convection and 150W fan-cooled ratings with high efficiency of up to 91%. The VFB150 power supplies are available in an industry-standard 5″ x 3″ x 1.38″ package, making them suitable for industrial and information technology applications. The series also has worldwide ITE safety approvals, and Class B compliance for both conducted and radiated emissions for easy integration into a wide range of applications. XP Power VFB150 Open-Frame 150W AC-DC Power Supplies operate from a 90V_AC to 264V_AC input range and a temperature range of -10°C to +70°C.

Features

Cost-effective power supplies
Low no-load input power reduces power wastage and increases efficiency
Overcurrent, overvoltage, and short-circuit protection

Industry-standard footprint and Class B EMC compliance enables easy system integration
Open-frame design
3-year warranty

Applications

IoT and Industry 4.0
Information technology
Industrial technology
Analytical instrumentation

Test and measurement
Robotics
Factory automation
Process control

Specifications

150W fan cooled, 100W convection rating
Single outputs from 12V_DC to 48V_DC
90V_AC to 264V_AC input range
High efficiency – up to 91%

3kV_AC input-to-output isolation
0.15W no-load input power
12V_DC 0.3A fan supply
-10°C to +70°C operating temperature range

XP Power VFB150 Open-Frame 150W AC-DC Power Supplies

Features

Applications

Specifications

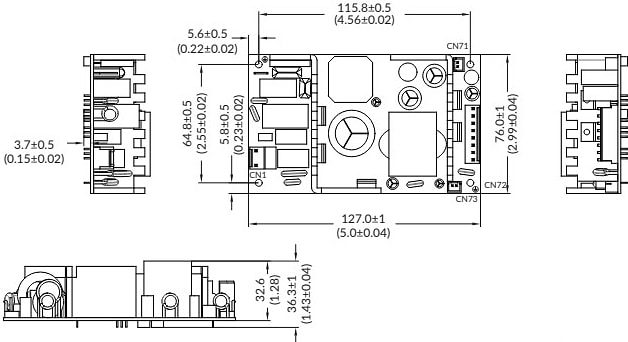

Dimensions – mm (in)
