XP Power ITU03 3W Regulated DC-DC Converters

XP Power ITU03 3W Regulated DC-DC Converters offer a compact design with an efficiency of up to 84%. The converters feature regulated single and dual outputs from 3.3V_DC to 30V_DC and a nominal input range of 4.5V_DC to 18V_DC, 9V_DC to 36V_DC, or 18V_DC to 75V_DC. The series offers a wide 4:1 input range, short-circuit protection, remote on/off, and complies with EN55032. XP Power ITU03 3W Regulated DC-DC Converters are available in a compact 14mm x 14mm x 8.1mm DIP8 package.

Features

3.3V_DC to 30V_DC regulated single and dual outputs
Wide 4:1 input range
Input ranges
- 4.5V_DC to 18V_DC
- 9V_DC to 36V_DC
- 18V_DC to 75V_DC
14mm x 14mm x 8.1mm DIP8 package
1.6kV_DC input/output isolation

Efficiency to 84%
Complies with EN55032 Class A
Short-circuit protection
Remote on/off
-40°C to +80°C operating temperature range
Full power to +70°C
3-year warranty

XP Power ITU03 3W Regulated DC-DC Converters

Features

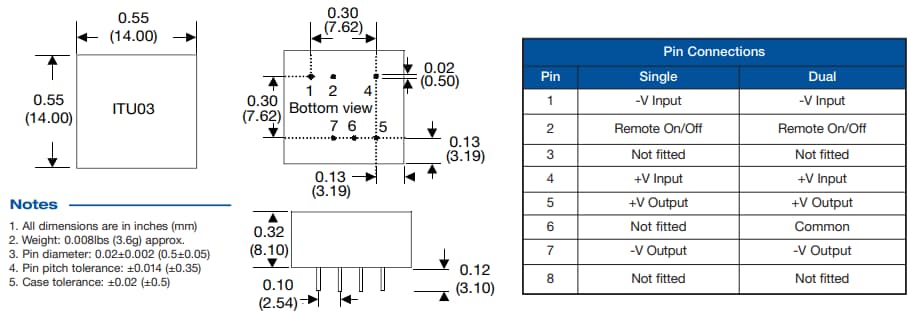

Dimensions and Pinout
