XP Power ITR03 3W Unregulated DC-DC Converters

XP Power ITR03 3W Unregulated DC-DC Converters offer a compact design with a high efficiency of 83% to 91%. The converters feature unregulated single outputs from 5V_DC to 15V_DC and nominal inputs of 5V_DC, 12V_DC, and 24V_DC. The series has an operating temperature range of -40°C to +100°C with full power operation of up to +85°C. XP Power ITR03 3W Unregulated DC-DC Converters are available in a compact 11.8mm x 9.66mm x 7.5mm SIP4 package.

Features

5V_DC to 15V_DC unregulated single outputs
±10% input range, nominal 5V_DC, 12V_DC, and 24V_DC
11.8mm x 9.66mm x 7.5mm SIP4 package
3kV_DC input/output functional isolation
59W/in³ power density

Up to 91% high efficiency
Complies with EN55032 class B
-40°C to +100°C operating temperature range
Full power to +85°C
3-year warranty

XP Power ITR03 3W Unregulated DC-DC Converters

Features

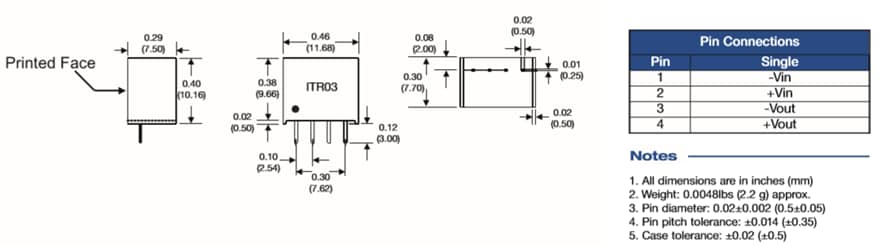

Dimensions and Pinout
