XP Power IMB01 Medical DC-DC Converters

XP Power IMB01 Medical DC-DC Converters are designed for medical applications and are 2 x MOPP and IEC60601-1 compliant. The 1W converters offer a single unregulated output in a compact SIP7 package. The series features short circuit protection, low leakage current of 2μA, ±10% input range, and 4kVAC reinforced isolation. XP Power IMB01 Medical DC-DC Converters have worldwide medical approvals and an operating temperature range of -40°C to +105°C.

Features

  • Single unregulated output
  • ±10% input range
  • SIP7 package
  • Worldwide medical approvals
  • 4kVAC reinforced isolation
  • 2 x MOPP at 300VAC
  • 2μA patient leakage current
  • -40°C to +105°C operating temperature
  • Full load at +85°C ambient
  • 4.3Mhrs mean time between failures (MTBF)
  • 3-year warranty

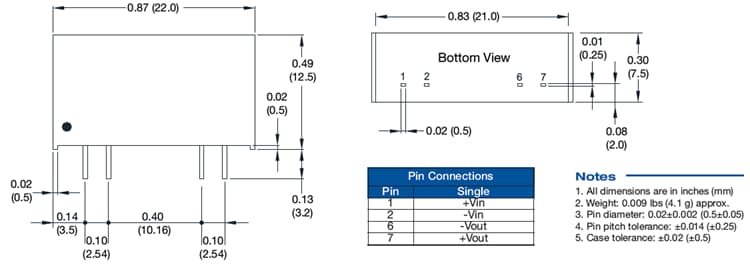

Mechanical Details

XP Power IMB01 Medical DC-DC Converters
