Xenarc 1029 Series 10.1″ IP65 Water Resistant Monitors

Xenarc Technologies 1029 Series 10.1″ IP65 Water Resistant Monitors are direct sunlight readable, IP65 dust/splash-proof, and feature capacitive touchscreens with built-in waterproof speakers. The 1,000 NIT rated brightness of the water and dust resistant 1029 Series makes it ideal for challenging outdoor applications under direct sunlight and protects from environmental hazards.

The Xenarc 1029 Series capacitive touchscreen panel provides a more responsive touch interface than resistive touch. The rugged, heavy-duty 10.1″ industrial monitor is available with optical bonding and an IP67 rating as the 1029GNH.

Features

IP65 Waterproof and dust proof casing
Projected capacitive touchscreen option – USB
Waterproof speakers
VGA, HDMI, DVI, and AV inputs
16×9 Aspect ratio
LED Backlight, ambient light sensor
High performance image and video signal processor
Vertical and horizontal image flip

Front buttons disabling capability
Chip monolithic ceramic capacitors for improved durability
AV2 Autoswitching upon signal detection
VESA 75mm Standard
26-Pin heavy-duty connector with connector locking
Brightness – 1000cd/m² sunlight readable
Anti-reflective and anti-fingerprint coating

Applications

Transportation
- Marine, air, heavy vehicles, mining, weigh stations, fleet management, telematics, in-car computing, public transit, cargo
System integration
- Machinery controls, factory automation, environmental monitoring, home automation, military, smart home
Point of sale
- Hospitality, digital signage, self-service kiosks, outdoor kiosks and signage, casino
Data monitoring
- Cloud, IoT, medical, logistics, inventory management, oil & gas/utilities, law enforcement, broadcasting, veterinary, first person view
Broadcast and production
- Broadcast stations, mobile production vehicles, field rugged deployment for your mobile workforce, studio video production

Specifications

1024 x 600 Physical resolution
640 x 480 – 1920 x 1080 Supported resolution
1000cd/m2 Brightness
600:1 Contrast ratio
140° Horizontal, 120° vertical viewing angle
Response time (Tr/Tf) of 5/20ms (Typ.)

DC 9V – 36V Operating voltage
<10W Power consumption
-4°F to 158°F Operating temperature
-22°F to 176°F Storage temperature
3.64lbs Weight
24 Month warranty

Xenarc 1029 Series 10.1″ IP65 Water Resistant Monitors

Features

Applications

Specifications

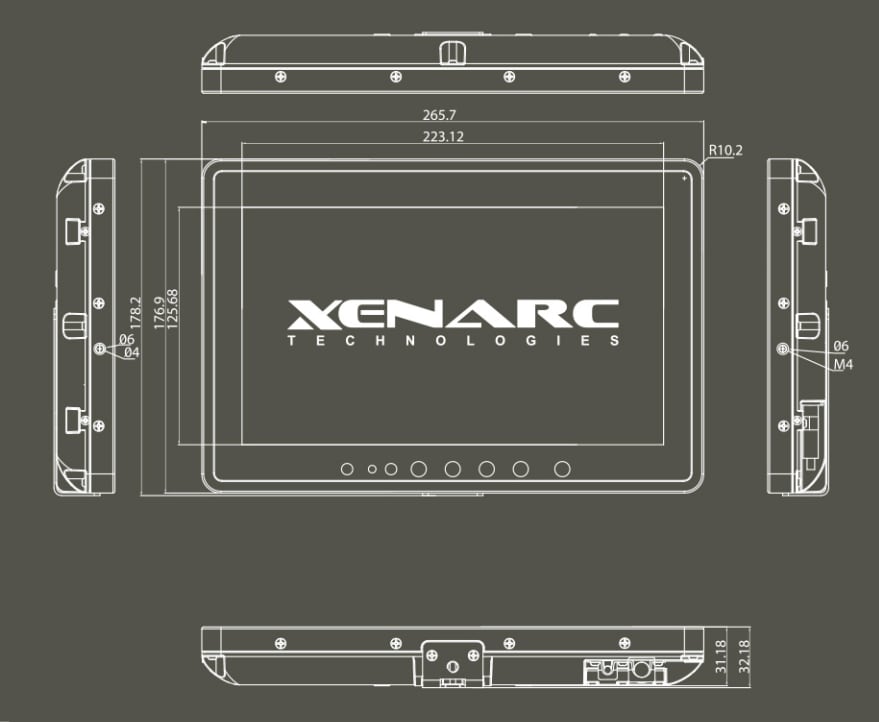

Dimensions

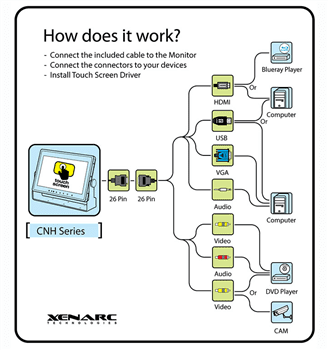

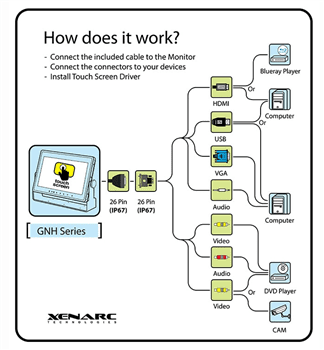

Functional Diagrams
