Xenarc 1020/1022 Series 10.1″ LCD Monitors

Xenarc Technologies 1020/1022 Series 10.1″ LCD Monitors are industrial-grade models that incorporate LED backlight technology. Solid capacitors are used in place of electrolytic capacitors though out the 1020/1022 Series Monitors to further improve the stability and durability, especially in extreme temperature conditions.

The Xenarc 1020/1022 Series 10.1″ LCD Monitors feature 1024 x 600 pixels (3072 x 600 sub-pixels) that help display crystal clear text and ultra-sharp images through a VGA or HDMI signal. The 1020/1022 Series has a brushed, anodized aluminum faceplate. The entire enclosure is constructed with aluminum, making the 10″ monitor unit robust and ruggedized, ideal for harsh factory floor industrial environments.

The 1020/1022 Series 10.1″ Industrial Display Monitors are available with a touch screen as the 1020TSH or available with 1000NIT direct sunlight readability as the 1022YH.

Features

Heavy duty aluminum casing
5 Wire resistive touchscreen option – USB
VGA, HDMI, DVI, and AV inputs
16×9 Aspect ratio
LED Backlight, ambient light sensor
High performance image and video signal processor
Vertical and horizontal image flip

Front buttons disabling capability
Chip monolithic ceramic capacitors for improved durability
AV2 Auto switching upon signal detection
VESA 75mm Standard
26-Pin heavy-duty connector with connector locking
400cd/m² Brightness
Anti-glare coating

Applications

Transportation
- Marine, air, heavy vehicles, mining, weigh stations, fleet management, telematics, in-car computing, public transit, cargo
System integration
- Machinery controls, factory automation, environmental monitoring, home automation, military, smart home
Point of sale
- Hospitality, digital signage, self-service kiosks, outdoor kiosks and signage, casino
Data monitoring
- Cloud, IoT, medical, logistics, inventory management, oil & gas/utilities, law enforcement, broadcasting, veterinary, first person view
Broadcast and production
- Broadcast stations, mobile production vehicles, field rugged deployment for your mobile workforce, studio video production

Specifications

Physical resolution of 1024 x 600
Supported resolution of 640 x 480 – 1920 x 1080
400cd/m² Brightness
600:1 Contrast ratio
140° Horizontal, 120° vertical viewing angle
5/20ms (Typ.) Response time (Tr/Tf)

DC 9V – 36V Operating voltage
<20W Power consumption
-4°F to 158°F Operating temperature
-22°F to 176°F Storage temperature
3.3lbs Weight
24 Month warranty

Xenarc 1020/1022 Series 10.1″ LCD Monitors

Features

Applications

Specifications

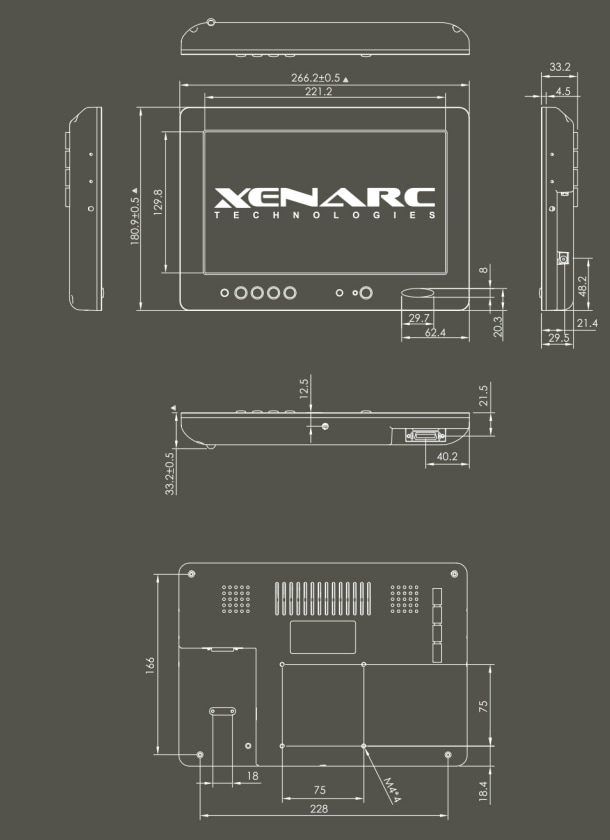

Dimensions

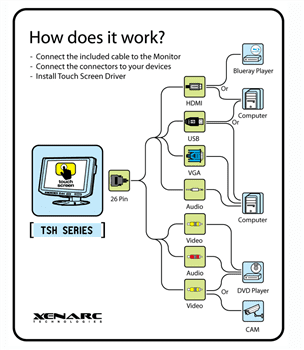

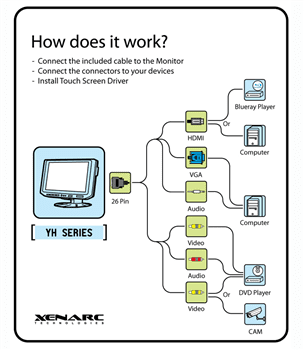

Functional Diagrams
