Würth Elektronik Optocoupler Darlington LEDs

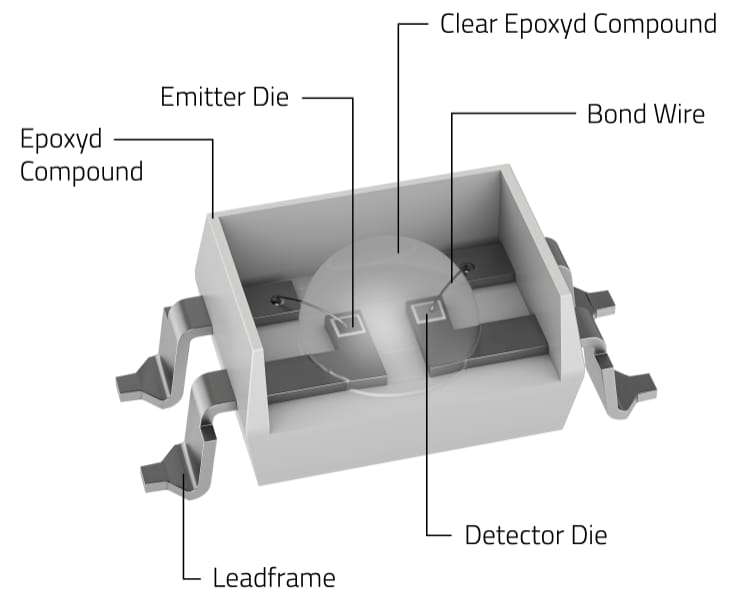

Würth Elektronik Optocoupler Darlington LEDs feature a high isolation voltage along with good stability of inner isolation. These LEDs also feature an optocoupler with an Infrared (IR) LED on the input side and a darlington transistor on the output side. The optocoupler darlington LEDs are available in DIP4, with different lead frame options, and SOP4 package sizes. These LEDs are used in programmable logic controllers, telephone, measuring instruments, and sequence controller applications.

Features

High isolation voltage
Good stability of inner isolation
RoHS compliant [2011/65/EU&2015/863]
Stable Current Transfer Ratio (CTR) in full operation

Different lead frame options
Packaging options:
- DIP 4
- SOP 4

Specifications

60mA forward current (at I_F=1mA, V_CE=2V)
7500% to 15000% maximum CTR range
40V to 350V collector-emitter voltage range (at I_F=1mA, V_CE=2V)

-55°C to +110°C operating temperature range
200mW power dissipation
1.4V forward voltage (at I_F=10mA)

Applications

Programmable logic controllers
Telephone / FAX
Sequence controller

Measuring instrument
Automatic vending machines

Würth Elektronik Optocoupler Darlington LEDs

Features

Specifications

Applications

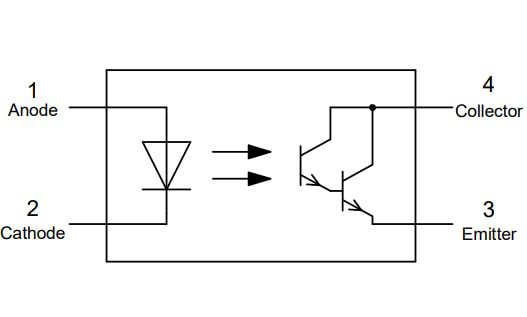

Schematic Diagram
