Wolfspeed KIT-CRD-CIL12N-GMA WolfPACK™ Evaluation Board

Wolfspeed KIT-CRD-CIL12N-GMA WolfPACK™ Half-Bridge Evaluation Board is a dynamic characterization tool built to evaluate and optimize the switching performance of the GM3 SiC half-bridge power modules. The Board includes a clamped inductive load (CIL) test circuit with a current measurement that provides a high speed, low inductance test fixture for double pulse testing. The test fixture combined with a chosen gate driver board allows measurement of timing, overshoot, speed, and switching loss.

Features

Optimized for Wolfspeed’s WolfPack GM3 SiC half-bridge power modules
DC bus voltage up to 1000V
Onboard 200uF bulk capacitor and high-frequency film capacitor bank

High speed, low inductance layout with a stray inductance of 4.9nH @10Mhz
On-board Current Viewing Resistor (CVR)
Screw terminal‘s for supply, midpoint, and load inductor connections

Applications

EV fast charging
Industrial power
UPS
Induction heating welding

Industrial motor drives
Power Supplies
Solar and renewable energy
Grid infrastructure

Kit Contents

Fully assembled PCB board
Reference design files

Wolfspeed KIT-CRD-CIL12N-GMA WolfPACK™ Evaluation Board

Features

Applications

Kit Contents

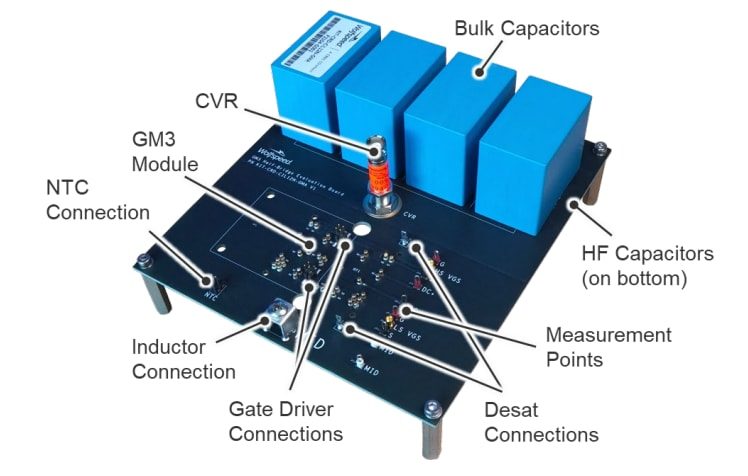

COMPONENT LAYOUT

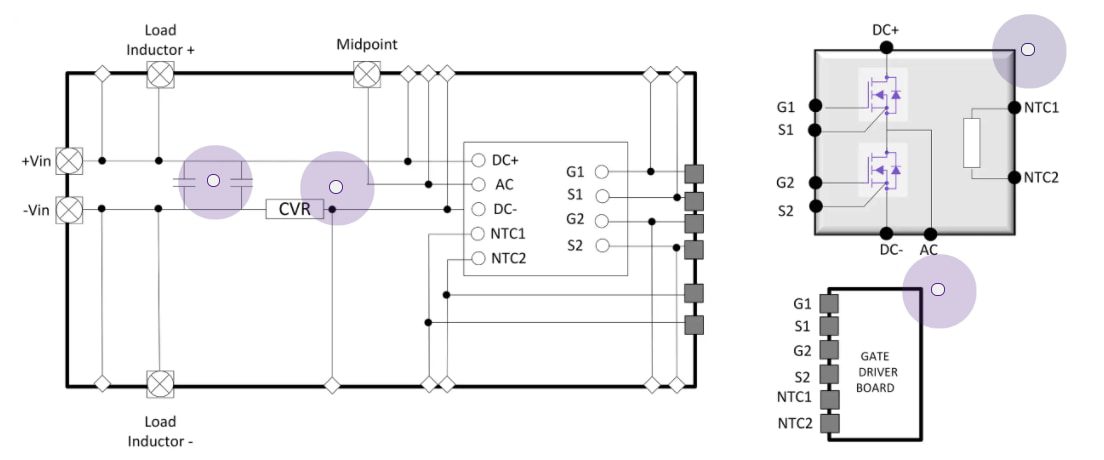

Block DIagram
