Wolfspeed HM3 Dual-Channel Differential Isolated Gate Driver

Wolfspeed HM3 Dual-Channel Differential Isolated Gate Driver is optimized for use with the HM3 1200V High-Performance Half-Bridge Modules. The CGD1700HB3P-HM3 gate driver offers high-frequency, ultra-fast switching operation with a 3W onboard isolated power supply. Features include configurable UVLO with hysteresis, differential inputs for increased noise immunity, and isolated PWM-encoded NTC resistance measurements. On-board over-current, shoot-through, and reverse polarity protections come standard. The device is ideal for applications with DC Bus voltages up to 1500V.

Features

Optimized for use with Wolfspeed’s High-Performance HM3 Half-Bridge Power Modules
High-frequency, ultra-fast switching operation
On-board 3W isolated power supplies
On-board over-current, shoot-through, and reverse polarity protection

Configurable UVLO with hysteresis
Differential inputs for increased noise immunity
Direct mount, low inductance design
Isolated PWM-encoded NTC resistance measurement

Applications

DC Bus voltages up to 1500V

Specifications

-0.5V to 18V supply voltage range
-0.5V to 5.5V logic level inputs
±14A output peak current
3W output power per channel

94kHz maximum switching frequency
sTemperature range
- -35°C to +85°C ambient operating
- -50°C to +125°C storage

Wolfspeed HM3 Dual-Channel Differential Isolated Gate Driver

Features

Applications

Specifications

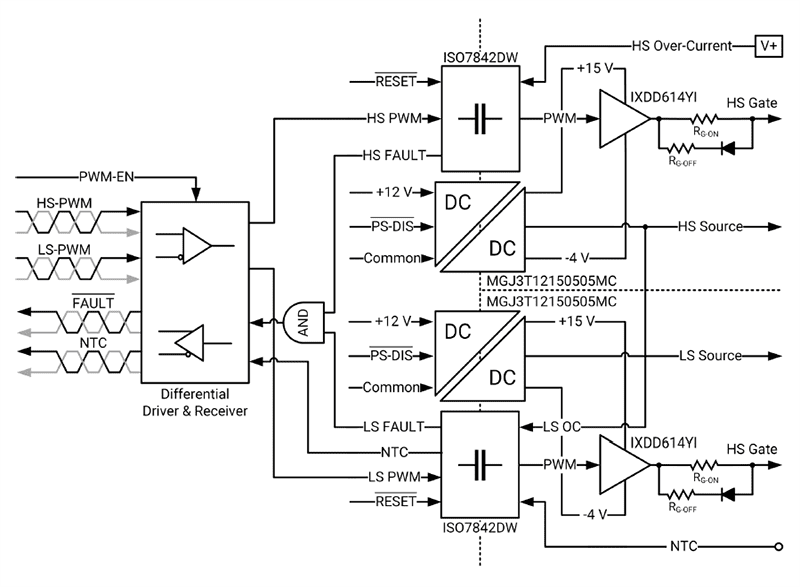

Functional Block Diagram

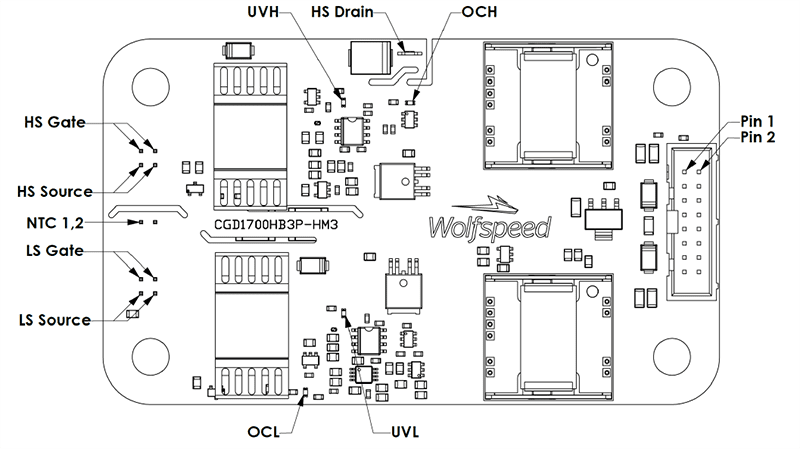

Gate Driver Interface
