WIZnet WIZ5xxSR-RP Ethernet Modules

WIZnet WIZ5xxSR-RP Ethernet Modules are designed using the RP2040 MCU with W5100S Ethernet Chip. The compact-sized WIZ5xxSR-RP includes the W5100S and features the 2x UART, 1x SWD, and 1x Ethernet interfaces. The protocol converter transmits data sent by serial equipment as TCP/IP data, then converts it through the network and back into serial data to the serial equipment. The device also offers a separate data UART and debug UART port.

The WIZnet WIZ5xxSR-RP Ethernet Modules are mounted with a 2mm pitch 1×12 Pin-header (3ea).

Features

Serial to Ethernet module based on RP2040 MCU (TTL level)
W5100S included
10/100Mbps Ethernet and up to 230kbps serial speed
2mm pitch 1 × 12 Pin-header (3ea) mounted module
Status pins: PHY link status / TCP connection status
Serial signals (UART or RS-232C)

WIZ500SR-RP has UART x 2, SWD x 1, Ethernet x 1
Separate data UART and debug UART port
Configuration is possible via serial AT commands or via the configuration tool
Support WIZ VSP (Virtual Serial Port) program

Specifications

50mm x 30mm x 5.7mm Dimensions
3.3V Input voltage
-20°C to 85°C Operation temperature

Available Eval Boards

WIZ500SR-RP-EVB Evaluation Board
WIZ505SR-RP-EVB Evaluation Board

WIZnet WIZ5xxSR-RP Ethernet Modules

Features

Specifications

Available Eval Boards

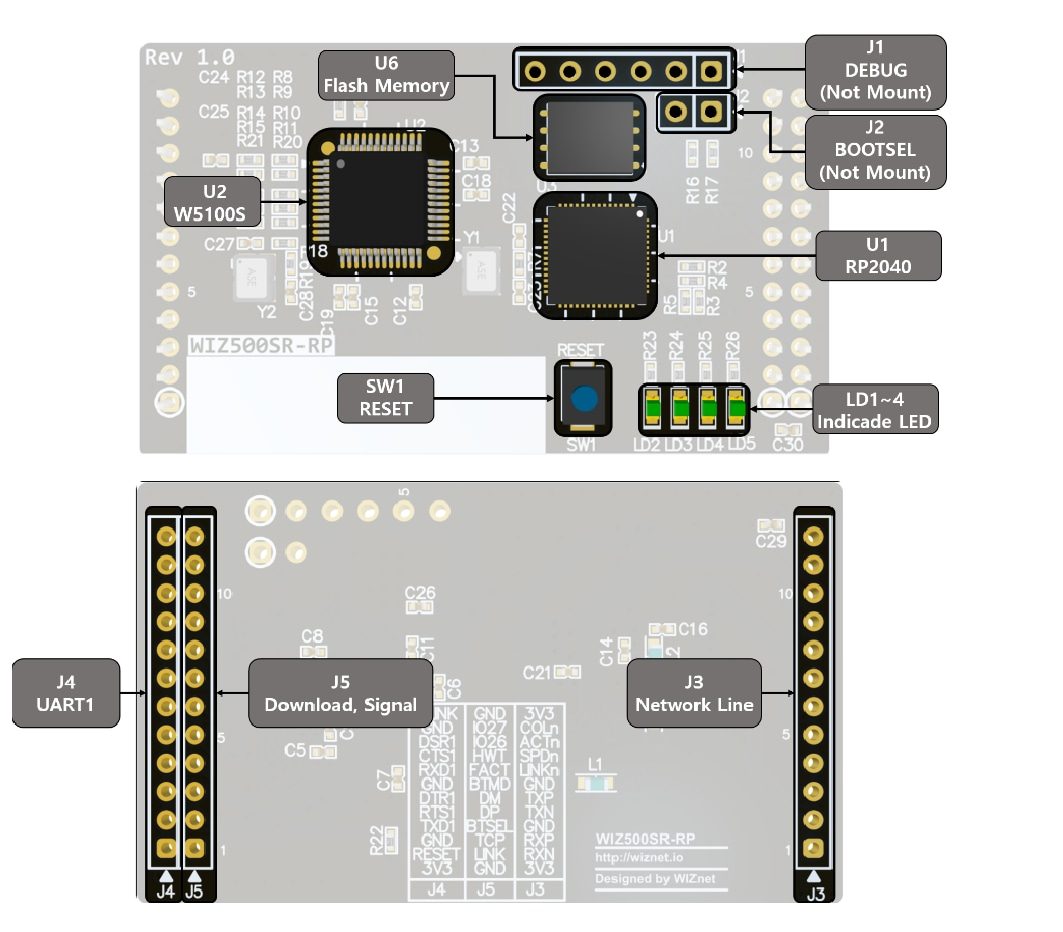

Overview

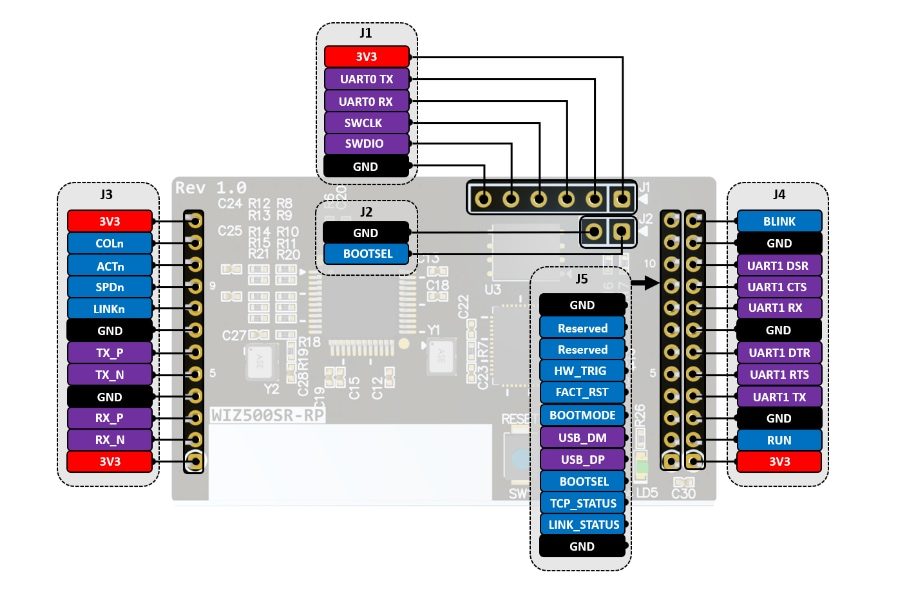

Pinout
