Wittra Sensor Tag Kit with 10 Sensor Tags

Wittra Sensor Tags are compact, rugged, pre-certified, and ready for field deployment. Each device includes several integrated sensors and location functions. The Sensor Tags wirelessly deliver sensor data and other information to the Cloud service via the Cloud Gateway, enabling users to monitor and measure the activity, status, and location of their assets. Each Sensor Tag is powered by a rechargeable battery that can provide months of power, depending on usage.

The Wittra Sensor Tag Kit includes 10 Sensor Tags and is offered in two variants, one for the North American market (1000363) and one for the European market (1000284).

Features

Compact, rugged Sensor Tags are sealed to IP67
Wirelessly provides sensor and location data
Pre-certified and ready for field deployment
Secure

Easy to set up and easy to use
Rechargeable battery provides months of life (Usage dependent)

Applications

Asset tracking
Machine health monitoring

Data logging
Environmental sensing

Specifications

Dimensions
- 40mm x 40mm x 15mm (without flex tail)
- 90mm x 40mm x 15mm (with flex tail)
Weight: 35g
Ambient operating temperature: -30°C to +85°C
Environmental rating: IP67
Battery: 360mAH LiPo rechargeable
Physical interface: Micro-B USB
Input power during charge: 5V, 100mA (Micro-B USB)
Average current consumption: 55µA

Sleep current 11µA
SenseIT network transmit frequency: 863.0MHz to 870.0MHz
SenseIT data transmission rate: 50kbps (as per IEE802.15.4g)
Radio transmit power: 20mW EIRP
Regulatory compliance: CE (ETSI EN300 220-1)
Security: DTLS
Accelerometer: 3D MEMS 25Hz Sampling
Magnetometer: 3D MEMS 20Hz Sampling
Temperature: MEMS, absolute accuracy ±2°C

Wittra Sensor Tag Kit with 10 Sensor Tags

Features

Applications

Specifications

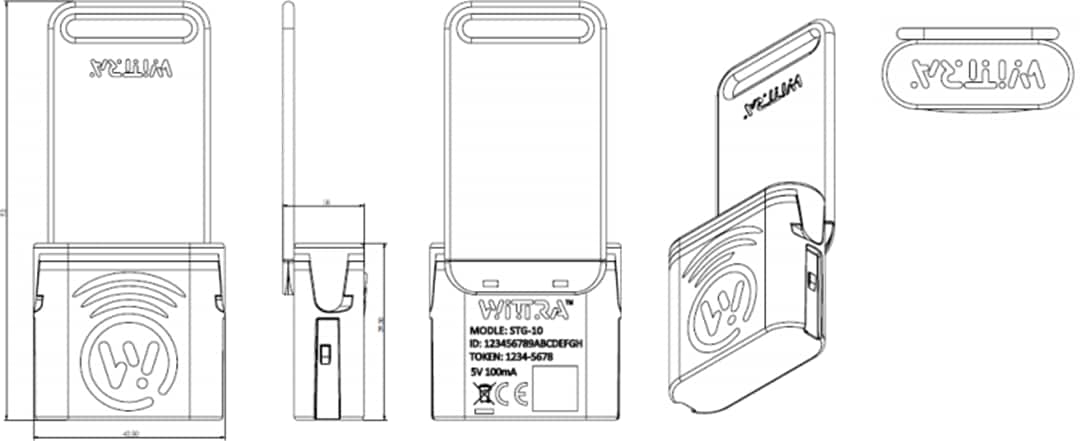

Mechanical Drawing
