WeEn Semiconductors ESDALD05 ESD Protection Diode Arrays

WeEn Semiconductors ESDALD05 ESD Protection Diode Arrays are designed to protect high-speed data interfaces and voltage-sensitive components from ESD and transient voltage events. The ESDALD05 is ideal for protecting sensitive electronic components connected to data and transmission lines from over-stress caused by ESD (Electrostatic Discharge).

The WeEn ESDALD05 ESD Protection Diode Arrays are suited for USB 2.0, Firewire, DVI, and Gigabit Ethernet Interfaces.

Features

IEC 61000-4-2 (ESD) surge withstand capability
Low Junction capacitance and very fast protection response

Low leakage current
Low clamping voltage

Applications

xDSLI
High Definition Multi-Media Interface (HDMI)
Digital Visual Interface (DVI)
USB 1.1/2.0/OTG
IEEE 1394 Firewire ports

Notebooks and handhelds
Projection TV and monitors
Set-top box
Flat-panel displays

WeEn Semiconductors ESDALD05 ESD Protection Diode Arrays

Features

Applications

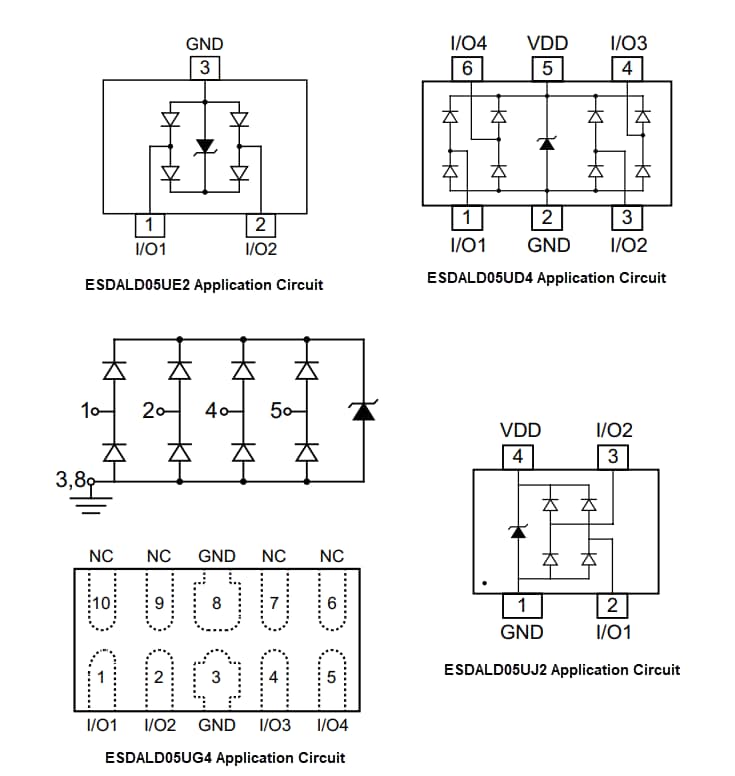

Application Circuits
