Wakefield-Vette DB Series DC Blowers

Wakefield-Vette DB Series DC Blowers feature an ultra-thin blade design that delivers up to 12,000RPM. These blowers offer ultra-quiet operation with noise as low as 21dB or 24dB and operate in a temperature range of -10°C to +70°C. Wakefield-Vette DB series DC blowers use pulse width modulation (PWM) control and provide a rated life expectancy of 50,000 hours or L-10 to 70,000 at 40°C. These blowers can be used in automotive, tablets, notebooks, medical, telecommunications, gaming monitors, and all-in-one PC applications.

Features

  • Ultrathin
  • Ultra-quiet operation
  • Three-phase motor
  • PWM control
  • Frequency generator output (FG signal/tach)

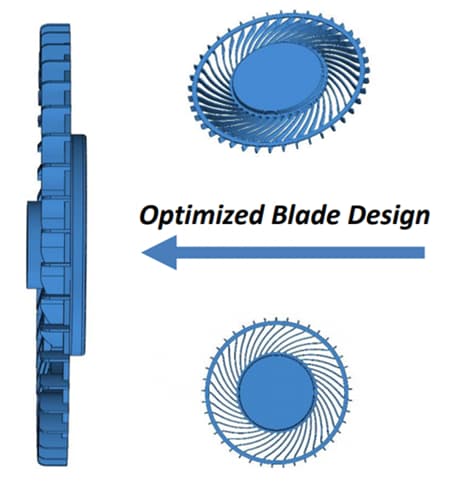

  • Optimized blade design
  • Various footprints
  • Custom sizes available

Specifications

  • Rated life expectancy of 50,000hrs or L-10 to 70,000hrs at 40°C
  • Up to 12,000RPM
  • Noise as low as 21dB or 24dB
  • 3VDC, 5VDC, or 12VDC voltage
  • -10°C to +70°C operating temperature range

Applications

  • Automotives
  • Tablets
  • Notebooks
  • Medical
  • Telecommunications
  • Gaming monitors
  • All-in-one PCs
  • Network servers

Product Depiction

Wakefield-Vette DB Series DC Blowers
