Wakefield-Vette 452E Series Ejectors for Embedded Cooling

Wakefield-Vette 452E Series Ejectors for Embedded Cooling are a ready-to-go insertion and extraction solution for embedded computing heat frames. The 452E can adapt to 3U or 6U frames through material and length options. The slim design allows for maximum PCB component space. Designed for VITA 48 applications, Wakefield-Vette 452E Series Ejectors for Embedded Cooling are ready to be inserted into any design.

Features

Designed for use in VITA 48 applications
2.7x to 3.9x mechanical advantage
6061-T6 aluminum or 7075-T6 aluminum

0.23″ nominal ejection distance
Maximum injection/ejection output 34lbs to 110lbs

Wakefield-Vette 452E Series Ejectors for Embedded Cooling

Features

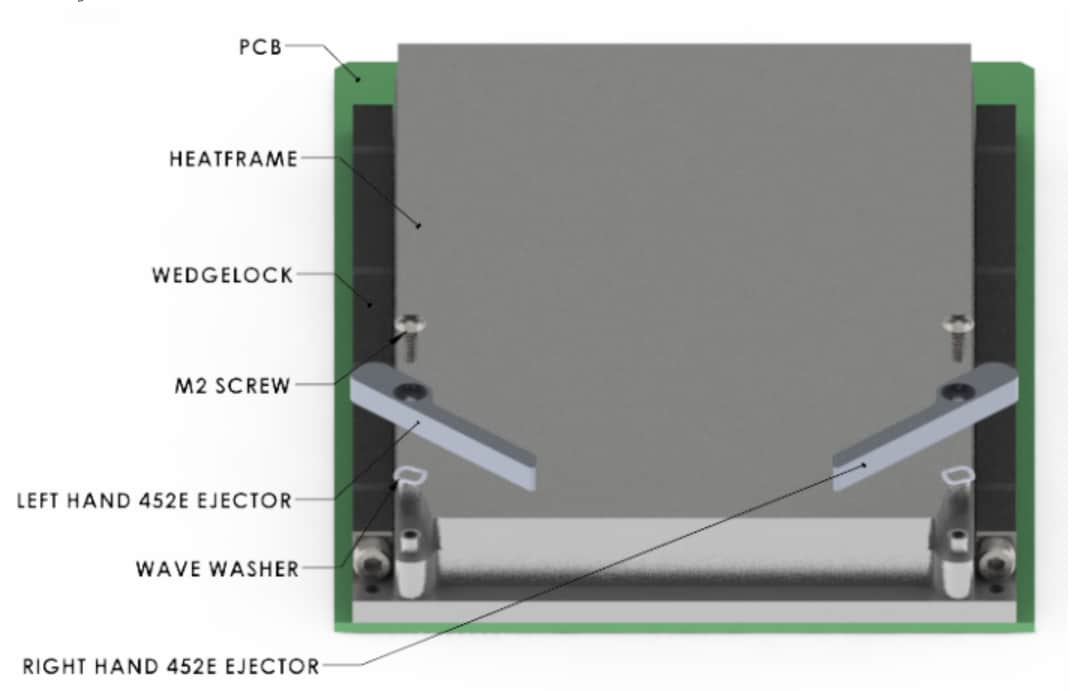

Ejectors Schematic

Ejectors Infographic
