VORAGO Technologies VA10805 Evaluation Kit

VORAGO Technologies VA10805 Evaluation Kit is used to evaluate the VA10805 radiation-tolerant Arm® Cortex®-M0 MCU. Created with VORAGO’s patented HARDSIL® technology, it specifically provides radiation protection for space applications. The VA10805 is an ideal solution for LEO missions, CubeSat, and SmallSat constellations in need of immediately available radiation-tolerant microcontroller capabilities.

Features

50MHz Arm® Cortex-M0
Latch-up immunity with HARDSIL® technology
Total Ionizing Dose (TID) >300 TID Krad (Si)
32KB data and 128KB program memory
1KB one-time programmable configuration memory (OTP)
A broad range of communication interfaces (I²C, UART, SPI)

24 counter/timers with extensive hardware/software triggering
56 multiplexed GPIOs
Easy-to-design development kit, with exceptional support and service offerings available
Available in die, plastic, or ceramic packages
Applications – Aerospace, Industrial, Oil, and Gas
Complete Arm® development environment available

VORAGO Technologies VA10805 Evaluation Kit

Features

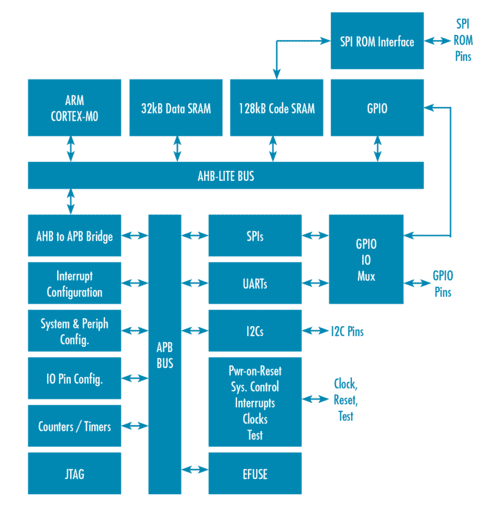

Block Diagram
