Voltronics / Knowles TM & QM Glass Quartz Trimmers

Voltronics / Knowles TM & QM Glass Quartz Trimmers are the panel mount version of the dielectric trimmers. These trimmers are available up to 180pF of maximum capacitance and offer 178pF of tunable range. The TM and QM trimmers feature linear tuning with no reversals and offer high Q’s, low RF losses, low constant inductance, and high self-resonant frequencies. The dielectrics are available in the MIL Std version and feature PC38, PC39, and PC48 designations.

Features

Design Features:
- Linear tuning with no reversals
- High Q’s, low RF losses, low constant inductance, and high self-resonant frequencies
- Superior seal because the screw head and O-ring do not move in and out
- 10,000 minimum cycles
- Smaller sealed MIL sizes
- Ability to provide extended metal or plastic shafts

Dielectric:
- Annular band glass
- Embedded band glass
- Quartz
±1% linearity with no capacitance reversals
1-inch to 8-inch ounces of tuning torque

Voltronics / Knowles TM & QM Glass Quartz Trimmers

Features

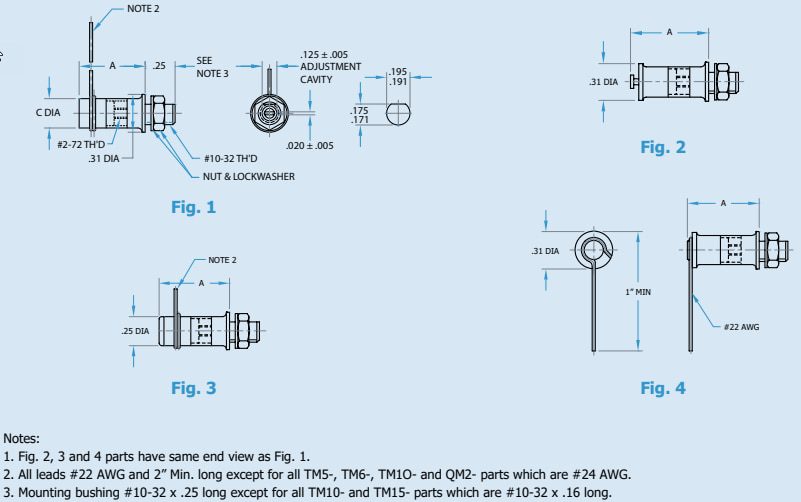

Dimension Diagram

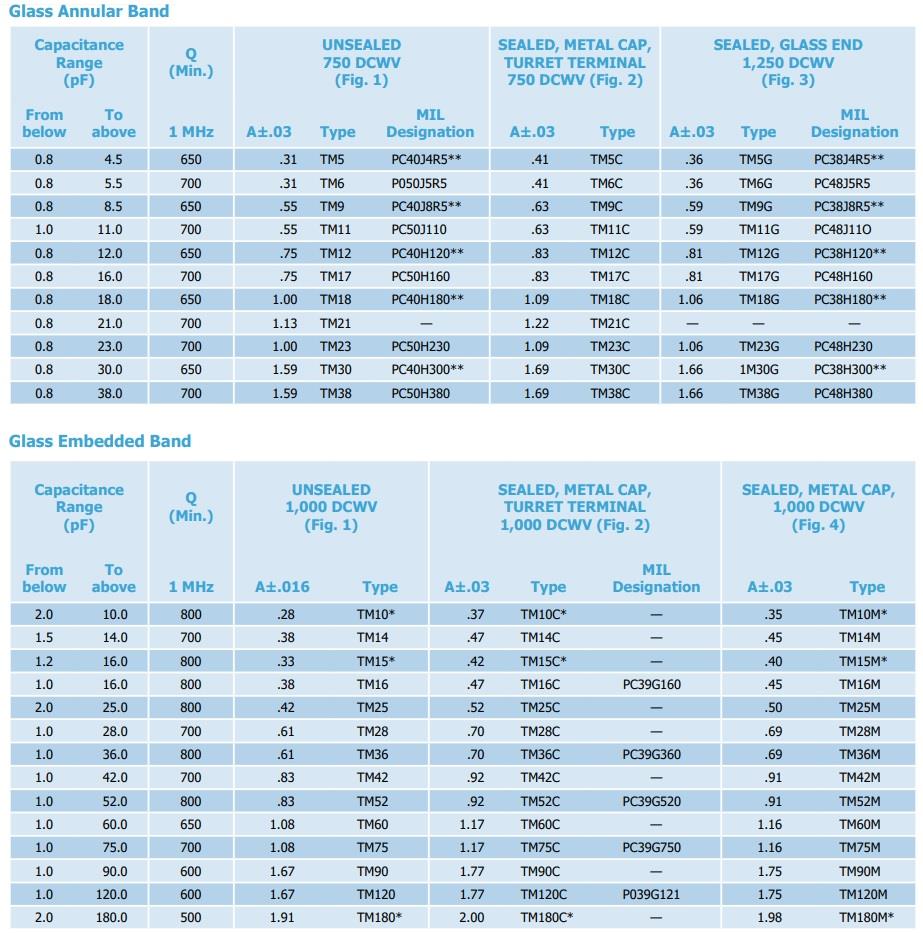

Different Bands and Configurations

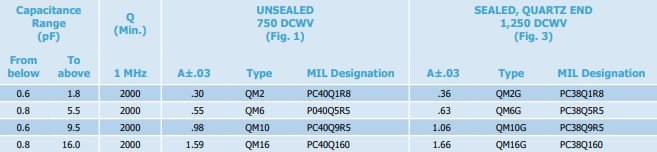

Quartz – Different Bands
