Voltronics / Knowles S Series Small Sealed Glass Trimmers

Knowles Voltronics S Series Small Sealed Glass Trimmers are up to 40% shorter with 25% more range than other sealed standard glass RC trimmers. These embedded band glass trimmers are available in horizontal mount, vertical mount, and surface mount with a life of 10,000 cycles minimum. A unique non-rotating piston design provides linear tuning, high Q, and high self-resonant frequencies. The O-ring seal assures protection up to 40PSI against dust, moisture, flux, solder, and cleaning solvents. Knowles Voltronics S trimmers feature a 1.5pF to 40pF capacitance range, a 250V_DC working voltage, and a -55°C to +125°C operating temperature range.

Features

Available in horizontal mount, vertical mount, and surface mount
Linear tuning with no reversals
True high-frequency device with high Qs, low RF losses, low constant inductance, and high self-resonant frequencies

Long life with 10,000 cycles minimum
Superior seal because the screw head and O-ring do not move in and out
Much smaller sealed MIL sizes
Ability to provide extended metal or plastic shafts

Specifications

1.5pF to 40pF capacitance range
800Q minimum at 1MHz
±150ppm/°C temperature coefficient

10⁶MΩ at 25°C and 10⁵MΩ at 125°C insulation resistance
250V_DC working voltage
-55°C to +125°C operating temperature range

Voltronics / Knowles S Series Small Sealed Glass Trimmers

Features

Specifications

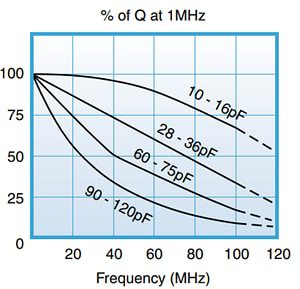

Quality Factor
