Vitrohm Pulse Resistors

Vitrohm Pulse Resistors are wirewound resistors that offer a 1.1W to 7.2W rated power range and 6.6KV pulse capability. These resistors feature high power dissipation in a small size, excellent inrush current capability, and a “Z” bending form available for TH. Vitrohm Pulse Resistors are ideal for power supplies, battery charges, detectors, smart meters, automotive electronics, and telecommunications.

Features

High power dissipation in a small size
Excellent inrush current capability
“Z” bending form available for TH

Other radial and axial bending available
6.6KV pulse capability
1.1W to 7.2W rated power range

Applications

Power supplies
Battery chargers
Detectors
EMI filters

White good
Smart meters
Telecommunications
Automotive electronics

Vitrohm Pulse Resistors

Features

Applications

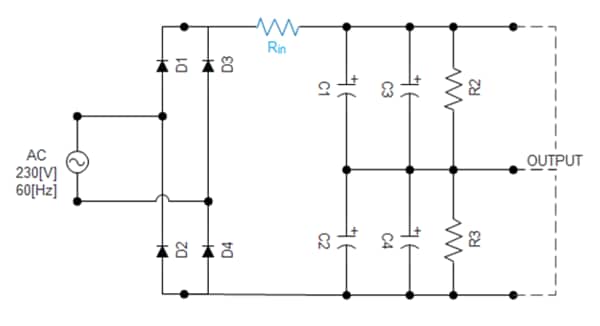

Application Example

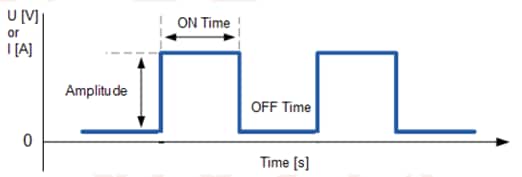

Pulse Diagram Example
