Vision Components IMX296/IMX296-C MIPI® Camera Modules

Vision Components IMX296/IMX296-C MIPI^® Camera Modules offer a SONY^® Pregius™ CMOS sensor with a 1440 x 1080 pixel and 1.6MP resolution. The ultra-compact boards support the MIPI CSI-2 specification and image sensor.

The Vision Components IMX296 and IMX296-C MIPI Camera Modules are ideal for multi-camera applications, including mobile and distributed applications. The Camera Module Sensor Boards deliver a highly versatile component for embedded vision solutions.

Features

IMX296
- 1/2.9″ CMOS sensor, monochrome, SONY^® Pregius™
- 1440 x 1080 pixel, 1.6MP
- 60fps, global shutter
- Trigger input/flash trigger output

IMX296-C
- 1/2.9″ CMOS sensor, color, SONY^® Pregius™
- 1440 x 1080 pixel, 1.6MP
- 60fps, global shutter
- Trigger input/flash trigger output

Applications

Autonomous driving
UAVs
Smart city

Medical technology
Laboratory automation

Vision Components IMX296/IMX296-C MIPI® Camera Modules

Features

Applications

Videos

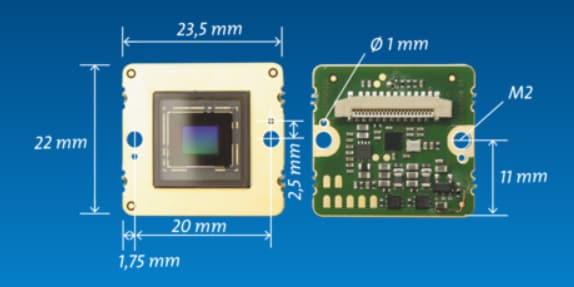

Dimensions

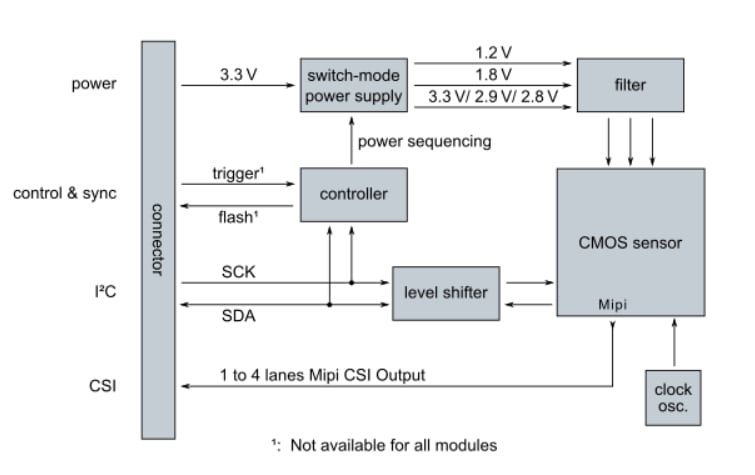

MIPI Sensor Module Circuit
