Vishay / Vitramon Surface-Mount DC Blocking Capacitors

Vishay / Vitramon Surface-Mount DC Blocking Capacitors provide resonance-free performance across a working frequency range. These multilayer ceramic chip capacitors (MLCCs) are offered in standard EIA body sizes of 0402, 0603, and 0805 with a 25V_DC to 500V_DC voltage range and 3.5% maximum dissipation factor (DF) at 1V_RMS and 1kHz. The capacitors feature a low loss reliable noble metal electrode system and operate in a -55°C to +125°C temperature range. Applications for Vishay / Vitramon Surface-Mount DC Blocking Capacitors include fiber-optic links, high isolation decoupling, instruments and test equipment, RF / microwave modules, diplexers, and more.

Features

Resonance-free performance across working frequency range
DC blocking, <0.5dB insertion loss across frequency band
Custom frequency ranges available
Surface-mount standard EIA body sizes

Low loss reliable noble metal electrode system
S-parameters available
Lead-free and RoHS-compliant variants available
Halogen-free

Applications

Fiber-optic links
High isolation decoupling
VCO frequency stabilization

Instruments and test equipment
LANs
RF / microwave modules, diplexers

Specifications

25V_DC to 500V_DC voltage range
3.5% maximum dissipation factor (DF) at 1V_RMS and 1kHz

0402, 0603, and 0805 case sizes
-55°C to +125°C operating temperature range

Vishay / Vitramon Surface-Mount DC Blocking Capacitors

Features

Applications

Specifications

Typical Attenuation Curves

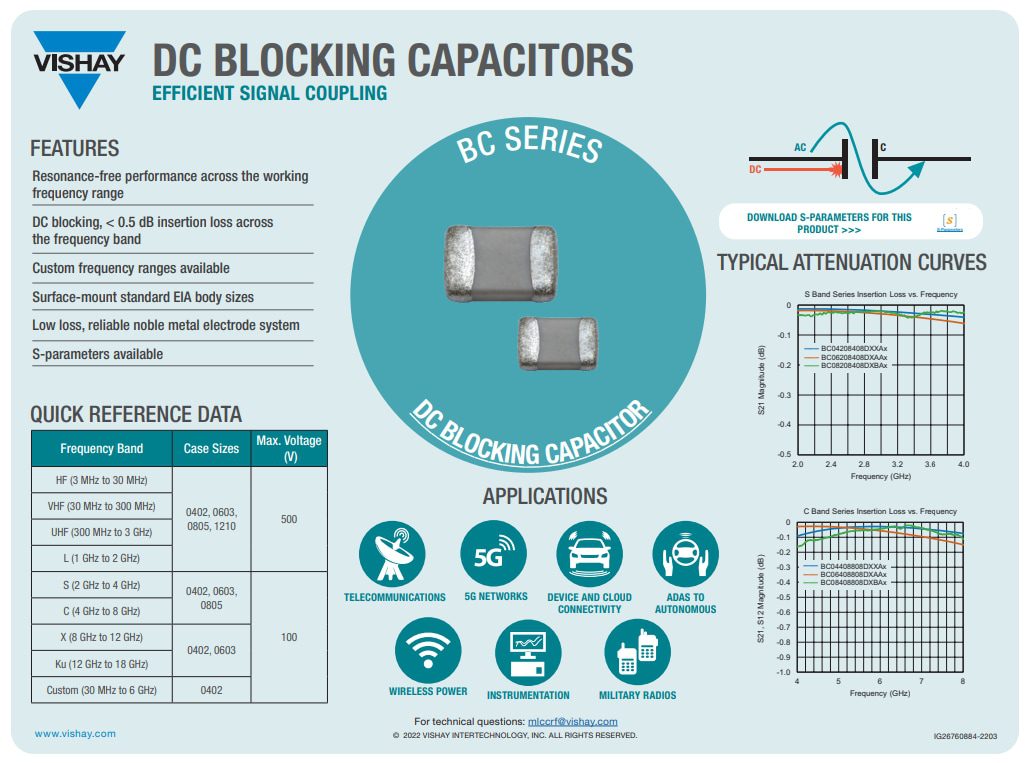

Infographic
