Vishay VEMD4 Silicon PIN Photodiodes

Vishay VEMD4 Silicon PIN Photodiodes are high speed and high sensitivity PIN photodiodes. Vishay offers surface-mount Automotive Grade silicon PIN photodiodes in the compact 0805 case size. The devices are housed in black packages with a low 0.7mm profile, 0.15mm lower than previous-generation devices. The opaque sidewalls of the photodiodes eliminate unwanted side illumination to increase the signal-to-noise ratio.

Features

Available in compact 0805 case size with a low 0.7mm profile
- Black packages with opaque sidewalls
- Eliminate unwanted side illumination
Increase signal to noise ratio
AEC-Q101 qualified
Daylight blocking filter (VEMD4110X01, VEMD4160X02, VEMD4110X02)
Feature a sensitive area of 0.42mm²
Reverse light current of 2.4µA
Low dark current of 1nA

Fast response times
±60° angles of half-sensitivity
Wide temperature range of -40°C to +110°C
910nm wavelengths of peak sensitivity
RoHS-compliant, halogen-free, and Vishay Green
Moisture sensitivity level (MSL) of 3 in accordance with J-STD-020 for a floor life of 168 hours

Applications

Solar load sensors
Automotive rain, light, and tunnel sensors
High speed photo detector

Photo interrupters
Light barriers for elevators, garage doors, and industrial equipment
Reflective sensors for touchless faucets, toilets, and trash cans

Vishay VEMD4 Silicon PIN Photodiodes

Features

Applications

Videos

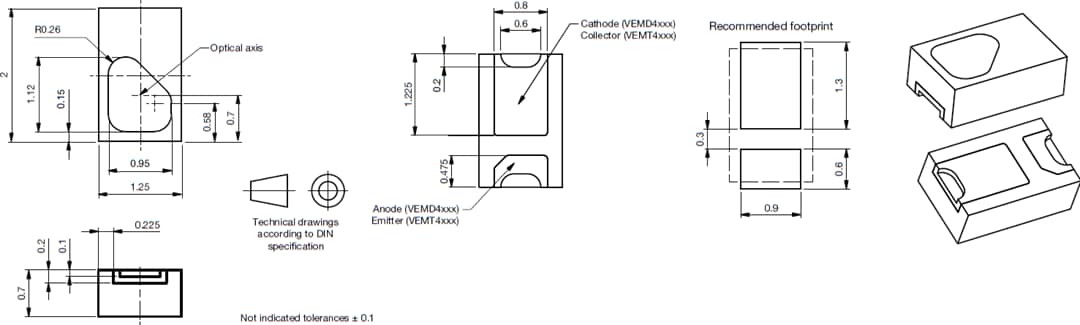

Package Outline
