Vishay VBUS05M2-HT5 ESD Protection Diode

Vishay VBUS05M2-HT5 ESD Protection Diode is a bidirectional and symmetrical (BiSy) two-line ESD protection device in an ultra-compact DFN1110-3A package, ideal for portable electronics. The high ESD immunity and very low capacitance make the VBUS05M2-HT5 optimal for high-frequency applications like USB2.0, USB3.0, or HDMI. This device provides a low maximum leakage current of <0.05μA at the working voltage of 5.5V, a reverse breakdown voltage of 8.5V (typical) at 1mA, and a maximum clamping voltage of 18V at 3.4A.

The Vishay VBUS05M2-HT5 ESD Protection Diode provides transient protection for data lines as per IEC 61000-4-2 at ± 20kV (air and contact discharge). With the VBUS05M2-HT5, two high-speed data lines can be protected against transient voltage signals. Connected to the data line (pin 1 and pin 2) and to ground (pin 3) negative transients will be clamped close above the 5.5V working range.

The VBUS05M2-HT5HG3-08 variant of this device is AEC-Q101 qualified for use in automotive applications.

Features

2-line ESD protection
Ultra-low load capacitance down to 0.45pF (typical)
Low maximum leakage current of < 0.05µA at 5.5V
Breakdown voltage of 8.5V (typical) at 1mA
Maximum clamping voltage of 18V at 3.6A
1Ω (typical) dynamic resistance
ESD immunity according to IEC 61000-4-2
- ±20kV contact discharge
- ±20kV air discharge

ESD capability according to AEC-Q101
- Human Body Model: Class H3B: >8kV
e3: Pins side wall plated with tin (Sn)
AOI capable
AEC-Q101 qualified (VBUS05M2-HT5HG3-08 only)
Compact DFN1110-3A package
RoHS compliant, halogen-free, Pb-free

Applications

ESD protection of high-speed data lines including HDMI, DisplayPort, eSATA, USB, 1394 / FireWire, and Thunderbolt

Vishay VBUS05M2-HT5 ESD Protection Diode

Features

Applications

Infographic

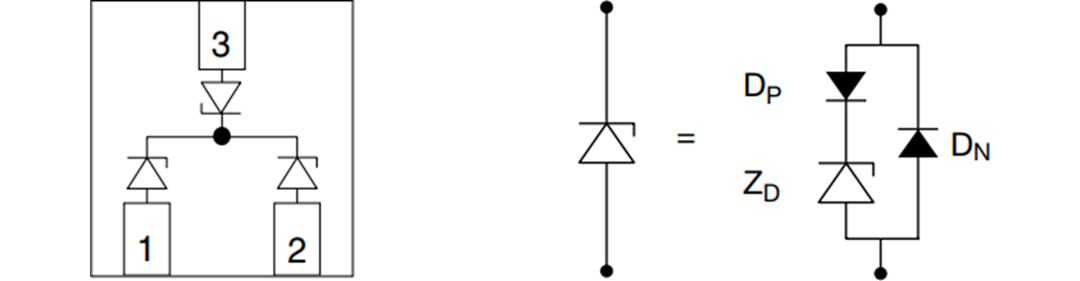

Schematic

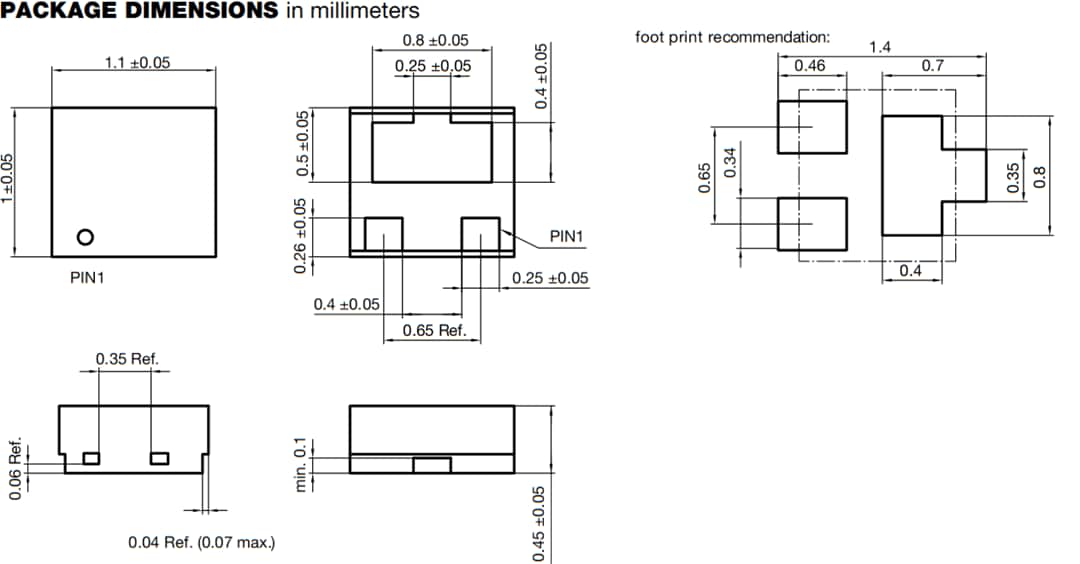

Package Outline
