Vishay / Techno TR Thick Film Planar Resistors

Vishay / Techno TR Thick Film Planar Resistors provide a through-hole and high-voltage solution. These resistors feature 30,000V capability, low voltage coefficient, and outstanding stability under adverse conditions. Vishay / Techno TR Thick Film Planar Resistors are ideally suited for use in applications requiring operation in an environment with high voltages.

Features

30,000V capability
Very low voltage coefficient to less than 1ppm/V
Outstanding stability under adverse conditions
Dividers available
Stable cermet resistive element bonded to a high-purity alumina substrate
Tough epoxy-based coating and high voltage stability

Thick film resistive element
Substrate of 96% pure alumina
Encapsulation of epoxy base, conformal coating
Solder plated copper leads terminals
4.5 pounds pull-test terminal strength
Power derated from ambient temperature +25°C

Applications

Power supplies
Transformers
High-voltage environments

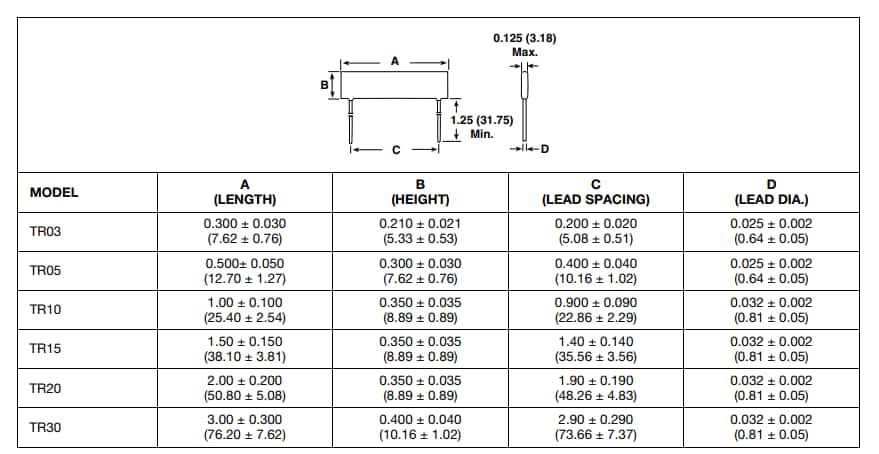

DIMENSIONS in. (mm)

Chart - Vishay / Techno TR Thick Film Planar Resistors
