Vishay / Techno HML Miniature Thick Film Resistors

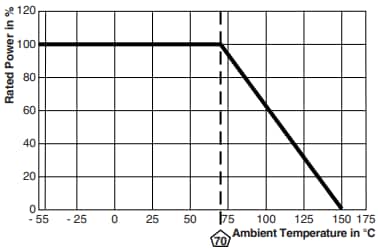

Vishay / Techno HML Miniature Thick Film Resistors feature a rugged plastic housing with a non-inductive design and dimensions of only 0.073″ x 0.036″. These industrial mini resistors are constructed with 100% pure tin solder coating on nickel lead wires and high purity 96% alumina substrate. The HML series provides a 63mW power rating and 50V maximum working voltage. The resistors operate in a -55°C to +150°C temperature range. Vishay / Techno HML Miniature Thick Film Resistors are designed with an axial-leaded, through-hole style and are suitable for soldering and welding applications.
