Vishay / Techno CRHP High Voltage Thick Film Chip Resistors

Vishay / Techno CRHP High Voltage Thick Film Chip Resistors offer a voltage rating of up to 3000V with outstanding stability of <0.5%. These resistors are constructed with proprietary cermet material and a three-sided wraparound termination style in internationally standardized sizes. The wide range of configurations provides design flexibility and automatic placement capability. The CRHP series is also flow solderable, and tape-and-reel packaging is available. Vishay / Techno CRHP High Voltage Thick Film Chip Resistors feature a 2MΩ to 50GΩ resistance range and a -55°C to +155°C operating temperature range. Applications include circuit breakers, lighting controls, high-voltage power supplies, and other high-voltage applications.

Features

High voltage
High ohmic values/small packages
Nickel barrier termination standard, other termination materials available
Proprietary cermet material
3-sided wraparound termination style
Internationally standardized sizes

Multiple styles, termination materials, and configurations allow wide design flexibility
Outstanding stability
Flow solderable
Automatic placement capability
Tape-and-reel packaging available

Applications

High-voltage power supplies
Circuit breakers

Lighting controls
High voltage

Specifications

Up to 3000V voltage rating
2MΩ to 50GΩ resistance range

<0.5% stability
-55°C to +155°C operating temperature range

Vishay / Techno CRHP High Voltage Thick Film Chip Resistors

Features

Applications

Specifications

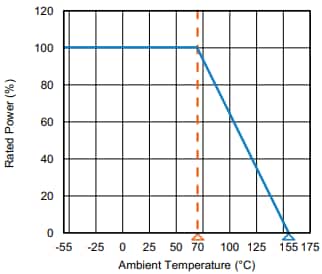

Derating Curve
