Vishay / Techno CDMM AEC-Q200 SMD Thick Film Chip Dividers

Vishay / Techno CDMM AEC-Q200 SMD Thick Film Chip Dividers are high voltage or high precision chip dividers offered in a ribbed molded package with compliant surface-mount leads. Designed to reduce component counts, improve TC tracking performance, and ratio stability in automotive and industrial equipment, the devices deliver a maximum working voltage of 1500V in a 4527 case size. The AEC-Q200 qualified components are also sulfur resistant, operate in a -55°C to +155°C temperature range, and offer a wide range of resistance values and ratios.

Features

High voltage up to 1500V utilizing thick film technology
Precision to ±0.5% with low TCR tracking to 25ppm/°C
Sulfur resistant
Automotive-compliant terminations

AEC-Q200 qualified
Wide range of resistance values and ratios
12.5mm creepage distance, rated 1250V per IEC 60664-1

Specifications

4527 case size
1.5W power rating
1500V maximum working voltage
500KΩ to 50MΩ resistance range
±0.5%, ±1%, ±2%, ±5%, and ±10% tolerances
100:1 to 700:1 ratio range
±0.5%, ±1%, ±2%, and ±5% ratio tolerances
±100ppm/°C temperature coefficient

±25ppm/°C to ±50ppm/°C TCR tracking
-55°C to +155°C operating temperature range
Materials
- Ruthenium oxide (thick film) resistive element
- Molded thermoplastic encapsulation
- Alumina substrate
- Solder-coated bronze termination

Vishay / Techno CDMM AEC-Q200 SMD Thick Film Chip Dividers

Features

Specifications

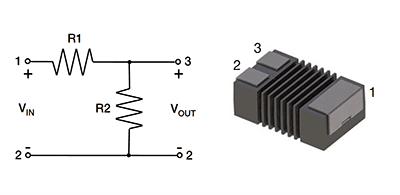

DC Electrical Circuit
