Vishay / Spectrol 534 Series 7/8″ Multi-Turn Potentiometers

Vishay / Spectrol 534 Series 7/8″ (22.2mm) Multi-Turn Wirewound Potentiometers are available in bushing and servo-mount designs with ±0.25% standard linearity and special resistance tolerances to 1%. These devices offer a 2W power rating at +70°C, 10 turns wirewound, 100Ω to 100kΩ resistance range, and 10Ω to 200kΩ capability range. Other features include dual gang configuration and concentric shafts, rear-shaft extensions and support bearing, as well as special markings and front-shaft extensions. Vishay / Spectrol 7/8″ (22.2mm) Multi-Turn Wirewound Potentiometers are ideal for industrial applications.

Features

Bushing and servo-mount designs available
Special resistance tolerances to 1%
Rear-shaft extensions and support bearing
Metric shaft available
Dual gang configuration and concentric shafts

High torque, center tap, slipping clutch on request
Special markings and front-shaft extensions
Ideal for industrial applications
Lead free
RoHS compliant

Specifications

10 turns wirewound
7/8″ (22.2mm) dimensions
±0.25% linearity, down to 0.05% on request
2W power rating at +70°C

100Ω to 100kΩ resistance range, standard values
10Ω to 200kΩ capability range
±5% standard tolerance
-55°C to +125°C temperature range

Vishay / Spectrol 534 Series 7/8″ Multi-Turn Potentiometers

Features

Specifications

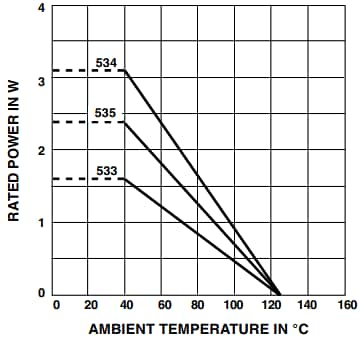

Power Rating

Schematic
