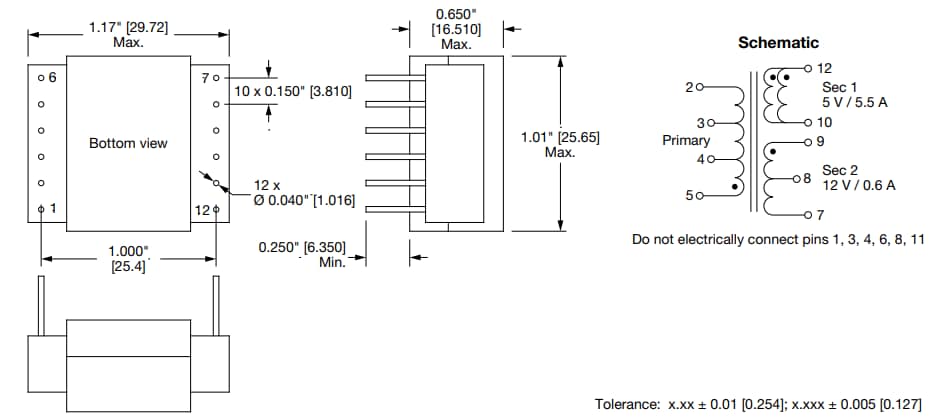

Vishay SGTPL-2516 Space Grade Planar Transformer

Vishay SGTPL-2516 Space Grade Planar Transformer is MIL-STD-981 class S compliant and offers a 150W power rating and 80kHz to 300kHz frequency range. This transformer features higher power density levels when compared to traditional planar designs and is easily customized to meet design-specific requirements, including operating voltage, inductance, and power. Over-molded windings make the SGTPL-2516 suitable for ruggedized applications, and the wide temperature range of -55°C to +130°C works in various environments. Vishay SGTPL-2516 Space Grade Planar Transformer is ideal for high-reliability space grade switch mode power supplies, flyback converters, and forward converters.
