Vishay / Sfernice P11H Modular High Torque Panel Potentiometers

Vishay / Sfernice P11H Modular High Torque Panel Potentiometers are designed to keep the setting under high mechanical constraints from vibration, shock, and other factors. Vishay / Sfernice P11H Potentiometers provide high torque (8Ncm) with a smooth feeling during the potentiometer’s entire life. The series offers 12.5mm² single turn panel control with 6.35mm shaft diameters and operates over a lifespan of 50,000 cycles.

Features

Keep the setting under high mechanical constraints (vibration and shock)
High torque (8Ncm) with smooth feeling during all potentiometer life
Torque stability under high environmental constraints

12.5mm² single turn panel control with 6.35mm shaft diameters
Compact, versatile, modular, and robust
Tests according to CECC 41000 or IEC 60393-1

Applications

Off-road
Welding machines
Audio

Syringe pumps
Cockpit

Specifications

IP64 sealing level
50,000 cycles mechanical lifespan
270° ±10° electrical travel
1kΩ to 100kΩ resistance range
±10% and ±20% tolerances
±150ppm temperature coefficient
350V limiting element voltage

2Ω typical end resistance
2% or 3Ω typical contact resistance variation
±5% typical independent linearity
1500V_RMS minimum dielectric strength
300° ±5° mechanical travel
-55°C to +125°C operating temperature range

Vishay / Sfernice P11H Modular High Torque Panel Potentiometers

Features

Applications

Specifications

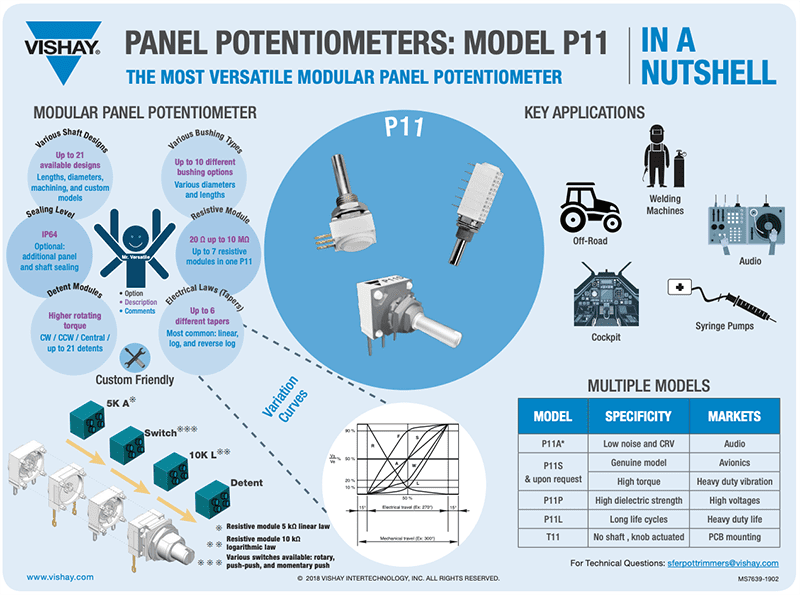

Infographic
