Vishay Semiconductors VOMDA1721T Automotive MOSFET Driver

Vishay Semiconductors VOMDA1721T Automotive MOSFET Driver offers all the required current to drive the internal circuitry from the infrared emitter on the low-voltage primary side of the isolation barrier. The automotive-qualified optically isolated MOSFET driver does not need a power supply to provide V_CC. The Vishay Semiconductors VOMDA1271 employs a turn-off circuit to achieve a fast turn-off of the MOSFET.

Features

AEC-Q102 qualified
Open circuit voltage of 8.5V typical at I_F = 10mA
Short circuit current at 15μA typical at I_F = 10mA

Isolation test voltage 3750V_RMS
Operating temperature from -40°C to +125°C

Applications

Automotive pre-charge relays
Powerwall chargers
Gate driver for high voltage MOSFETs

BMS
Custom solid-state relays

Vishay Semiconductors VOMDA1721T Automotive MOSFET Driver

Features

Applications

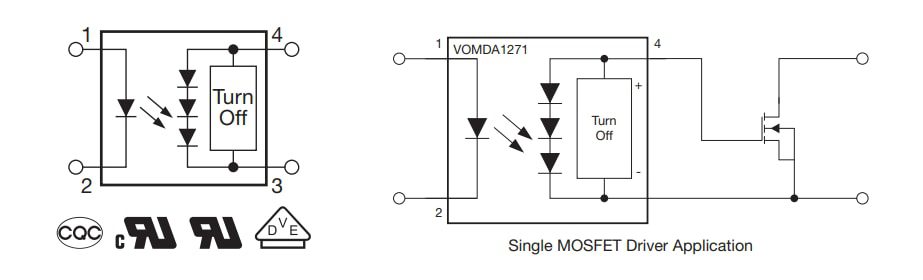

Pinout Application

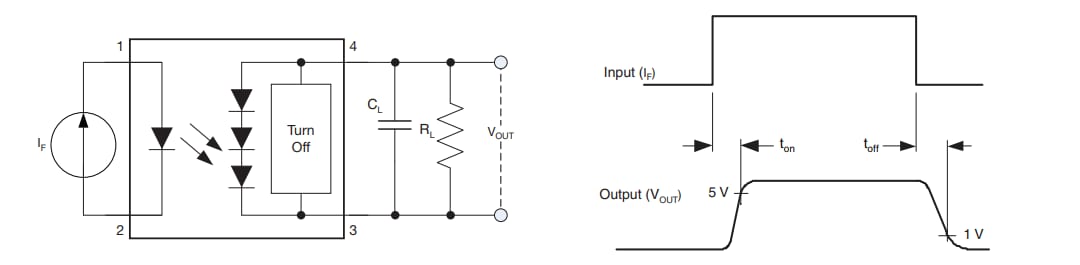

ton, toff Test Circuit & Waveforms

Infographic

Videos
