Vishay Semiconductors VOH/VOIH/VOWH 10MBd High Speed Optocouplers

Vishay Semiconductors VOH/VOIH/VOWH 10MBd High-Speed Optocouplers utilize a highly efficient input LED combined with a high-speed integrated photo-detector logic gate with a strobable output. These optocouplers feature an open drain output. The 10MBd high-speed optocouplers supply an internal shield to ensure a common mode transient immunity of 15kV/μs.

Features

15kV/μs minimum common mode rejection (CMR)
3750V_RMS or 5000V_RMS isolation voltage options
1.38V forward voltage
5V reverse voltage
LVTTL/LVCMOS compatibility
Low power consumption
Single- or dual-channel
10Mb/s data rate
10mA to 20mA forward current range
60mW to 85mW power dissipation range

Open drain output type
11ns to 23ns rise time range
2.3ns to 11ns fall time range
Package options
- DIP-8
- SMD-8
- SOIC-8
- SOP-5
-40°C to +110°C maximum operating temperature range

Applications

Microprocessor system interface
Ground loop elimination
Digital bus systems isolation

High speed A/D and D/A conversion
Digital control power supply
Level shifting

Block Diagrams

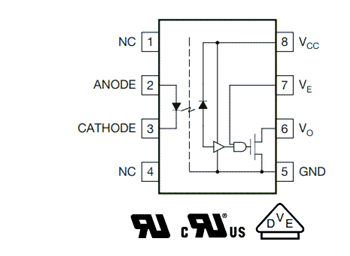

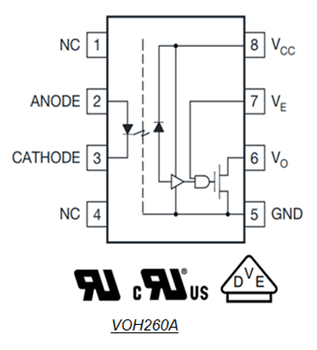

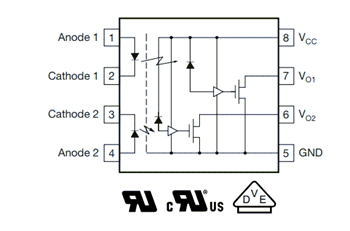

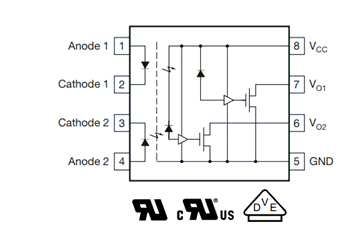

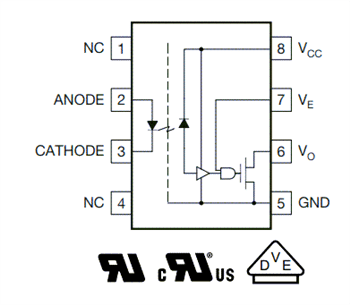

Block Diagram - Vishay Semiconductors VOH/VOIH/VOWH 10MBd High Speed Optocouplers
