Vishay Semiconductors VLMU35C UVC LEDs

Vishay Semiconductors VLMU35C Ultraviolet C (UVC) LEDs are ceramic-based low power devices with a silicone lens for a long lifetime. These UVC LEDs feature a reflow soldering method, dimming capability, low surface temperature, and small footprint. The VLMU35C UVC LEDs exhibit different radiant powers in a wavelength range of 265nm to 285nm. These LEDs are available in 3.45mm x 3.45mm x 1.78mm dimensions and operate from -40°C to 80°C temperature range. Typical applications include sterilization, medical application, sensing of gases, germs, and DNA.

Features

Ceramic SMT package with a quartz window/silicone lens
3.45mm x 3.45mm x 1.78mm dimensions
DC forward current 30mA to 250mA range
Gold plated (Au) leads/terminations finish

Reflow soldering method
MSL 3 according to J-STD-020
±60° angle of half intensity

Applications

Sterilization

Medical application

Specifications

2mW to 30mW minimum radiant power range, 3mW to 37mW typical
20mA to 250mA forward current range

265nm to 280nm wavelength range
5.0V to 7.7V forward voltage range

Vishay Semiconductors VLMU35C UVC LEDs

Features

Applications

Specifications

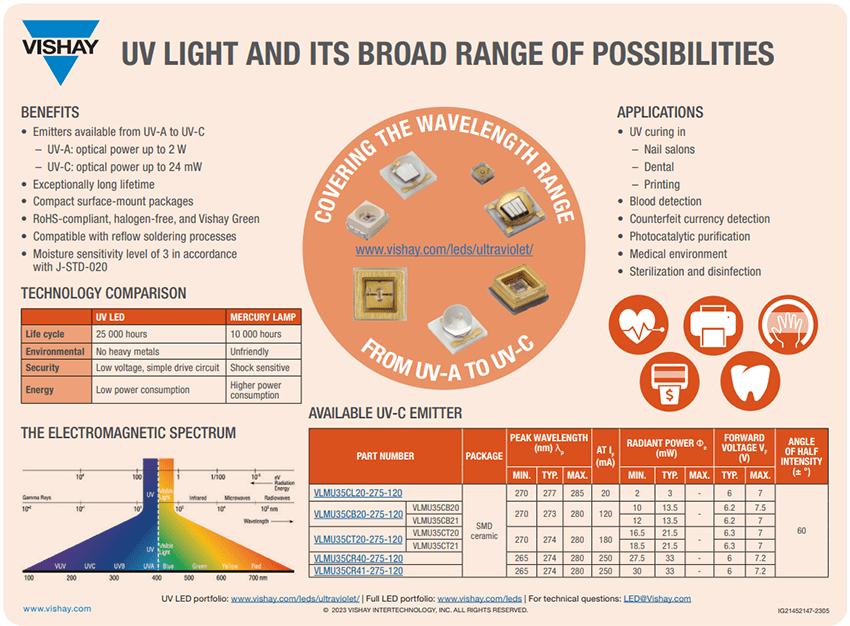

Infographic

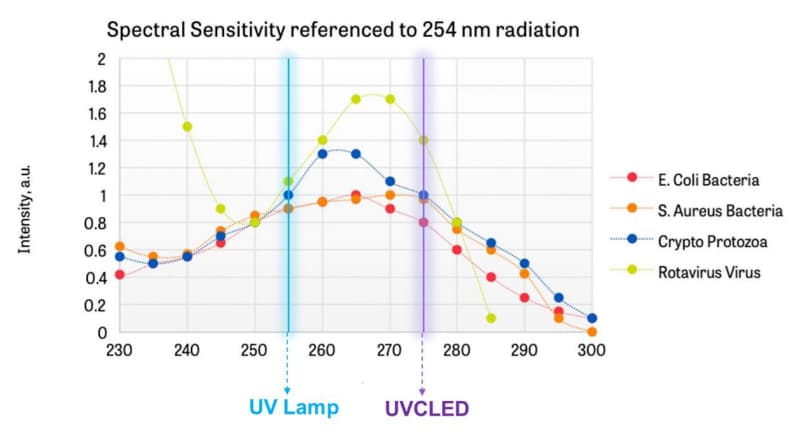

Performance Graph
