Vishay Semiconductors VEMD8081 Silicon PIN Photodiode

Vishay Semiconductors VEMD8081 Silicon PIN Photodiode offers high speed and enhanced sensitivity for visible light. The VEMD8081 Photodiode provides a low profile surface-mount device (SMD), including the chip with a 5.4mm2 sensitive area detecting visible and near-infrared radiation.

The Vishay Semiconductors VEMD8081 Silicon PIN Photodiode features an angle of half sensitivity ±65°, a 350nm to 1100nm range of spectral bandwidth, and a forward voltage of 2.3V to 3.3V. The VEMD8081 Photodiode is designed for high-speed photodetectors and wearables.

Features

  • Surface-mount package type
  • Top view package form
  • 4.8mm x 2.5mm x 0.48mm Dimensions (L x W x H)
  • Radiant sensitive area of 5.4mm2²
  • 0.48mm low profile package
  • Enhanced sensitivity for visible light
  • Suitable for visible and near infrared radiation
  • ϕ = ± 65° Angle of half sensitivity
  • 168h, MSL 3, according to J-STD-020 Floor life

Applications

  • High speed photodetectors
  • Wearables

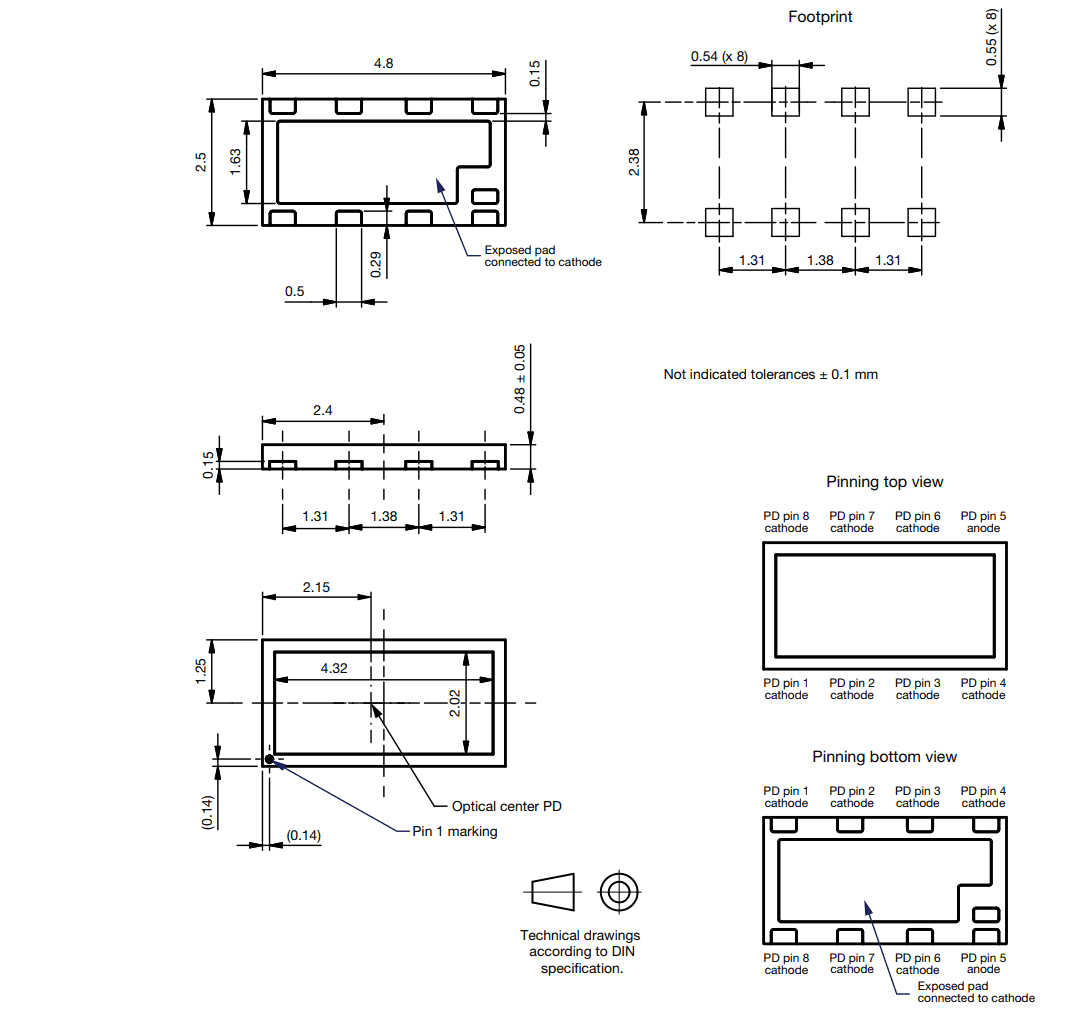

PACKAGE DIMENSIONS in millimeters

Vishay Semiconductors VEMD8081 Silicon PIN Photodiode
