Vishay Semiconductors VCAN36A2-03G & VCAN36A2-03S ESD Protection Diodes

Vishay Semiconductors VCAN36A2-03G and VCAN36A2-03S ESD Protection Diodes are Bidirectional Symmetrical (BiSy) dual-line ESD protection diodes optimized for CAN and FLEX-bus applications. These ESD Protection Diodes feature a maximum working voltage of ±33V (VCAN33A2-03G) and ±36V (VCAN36A2-03S) and a low 0.05µA leakage current. These devices also offer a very low 9.5pF (VCAN33A2-03G) or 10pF (VCAN36A2-03S) load capacitance. ESD immunity (IEC 61000-4-2) for both devices is ±30kV (contact/air discharge).

The Vishay Semiconductors VCAN36A2-03G ESD Protection Diodes are offered in a SOT-323 package. The VCAN36A2-03S ESD Protection Diodes are offered in a SOT-23 package. Both devices are available in AEC-Q101 qualified variants.

Features

2-line ESD protection
Maximum working voltage (V_RWM)
- VCAN33A2-03G: ±33V
- VCAN33A2-03S: ±36V
0.05μA reverse current (I_R)
Load capacitance (C_D)
- VCAN33A2-03G: 9.5pF
- VCAN33A2-03S: 10.0pF
Peak pulse current (I_PPM)
- VCAN33A2-03G: 2.5A
- VCAN33A2-03S: 2.4A
Peak pulse power (P_PP)
- VCAN33A2-03G: 140W
- VCAN33A2-03S: 150W

ESD immunity according to IEC 61000-4-2
- ±30kV contact discharge
- ±30kV air discharge
ESD capability according to AEC-Q101
- Human body model: Class H3B: >8kV
-55°C to +150°C operating junction temperature (T_J)
AEC-Q101 qualified (VCAN33A2-03GHx and VCAN33A2-03SHx only)
Package
- VCAN33A2-03G: SOT-323
- VCAN33A2-03S: SOT-23
Pb-free and RoHS compliant

Applications

CAN bus
FLEX bus

Datasheets

VCAN36A2-03G
VCAN36A2-03S

Vishay Semiconductors VCAN36A2-03G & VCAN36A2-03S ESD Protection Diodes

Features

Applications

Datasheets

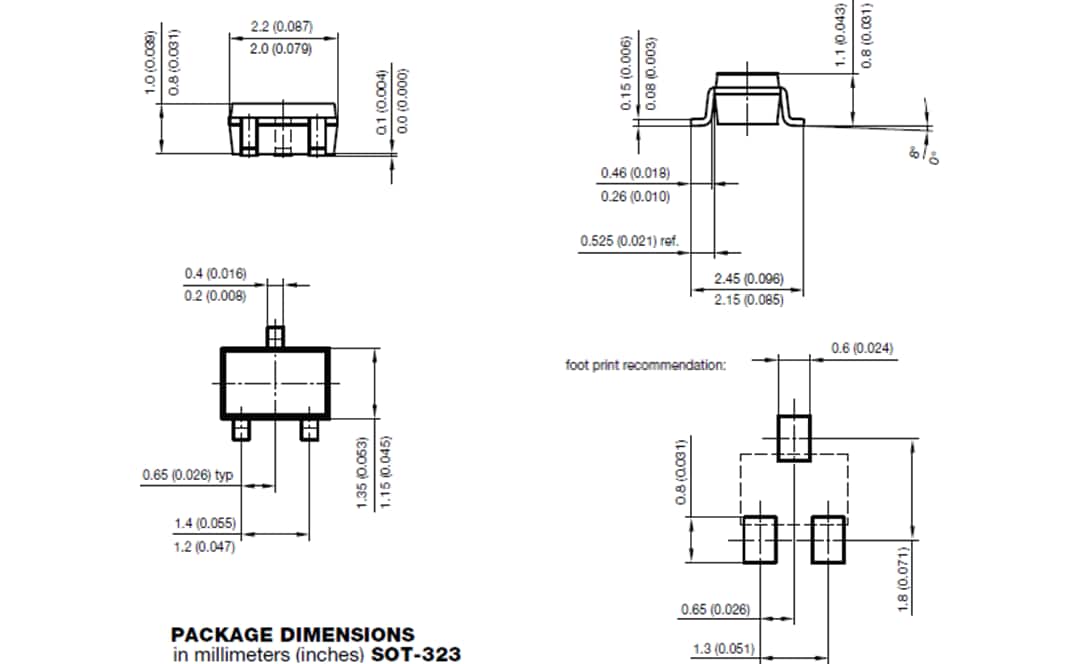

Package Outline (VCAN36A2-03G)

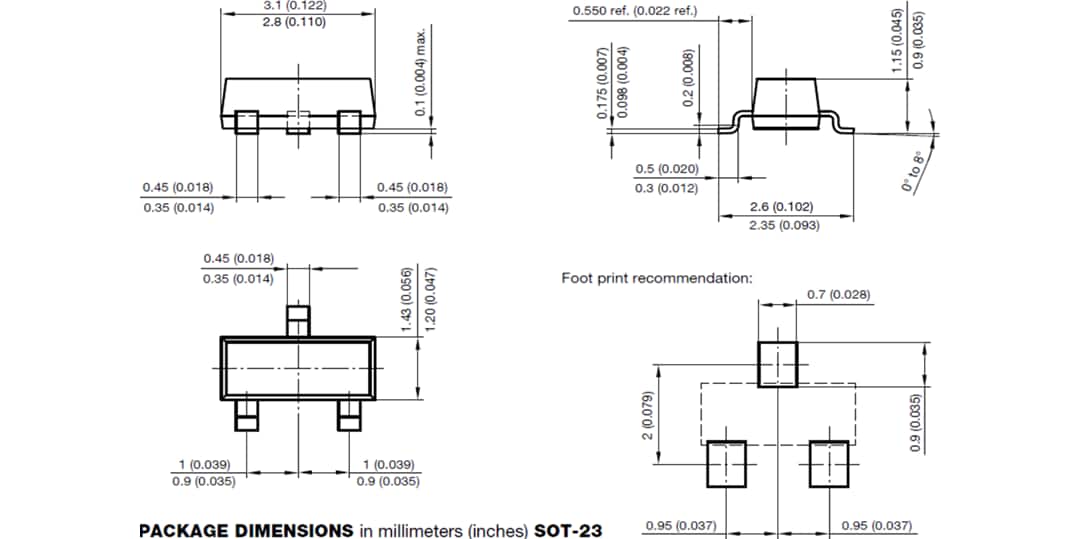

Package Outline (VCAN36A2-03S)
